#103953, "Wastegate on downpipe" Jul-13-08 04:23 PM by eclipse982nrRST
Hello friends.
I was curious to see everyone's opinion on mounting a 38mm wastegate directly onto the downpipe right after the flange on the turbine.
Do you think there is any disadvantage on doing this over mounting it coming off of the exhaust manifold? I am up to no good again as most of you know, and looking for a newer style mounting setup and notice that alot of people run a pipe coming off of the downpipe or right off of the flange and either dump back into the downpipe or atmosphere.
In my case, since I do run a 3" off of the turbo, I would have to drill out a spot close to the flange and come right off of the downpipe.
Thoughts and opinions welcome.
EDIT: A pic to kind of see what I am talking about. However like I said, it would come out of my downpipe instead of off the flange like pictured.
#103954, "RE: Wastegate on downpipe" In response to Reply # 0 Jul-13-08 04:56 PM by foggy45
if you put it right on the down pipe, how is it possibly gonna control any boost? O.o
bad idea bro
turbo systems 101 man. the reason for the wastegate is to control the boost made by the compressor by controling the flow to the turbine. on the manifold the flow vents out of the wastegate and not through the turbine housing. the internal wastegates use a flapper on the turbine itself to control this flow.
if you put it on the downpipe, the turbo has already spooled and nothing post flange can stop the turbine, all you did was make a boost responsive exhaust pipe.
the pipes you see coming off the flangs are from internal gates and are venting the bypass exhaust to atmosphere or to the exhaust.
if you put it on the flange as in the pic it may work but i dont know how responsive it would be
______________________________________ ______________________________________ "Don't fear the weapon, fear the soul of the warrior using it." "My CEL only goes off when i remove my battery."
Best sum up of working on a 2GNT DR1665- "#5. Spike that motherfucker on the garage floor and grab a beer. You deserve it."
Ahhhh Priceless . . . eclipse982nrRST "its actually lightish red" RoninEclipse2G "yeah, they already have a color for that... it's called PINK"
#103955, "RE: Wastegate on downpipe" In response to Reply # 0
Originally posted by eclipse982nrRST Hello friends. I was curious to see everyone's opinion on mounting a 38mm wastegate directly onto the downpipe right after the flange on the turbine. Do you think there is any disadvantage on doing this over mounting it coming off of the exhaust manifold? I am up to no good again as most of you know, and looking for a newer style mounting setup and notice that alot of people run a pipe coming off of the downpipe or right off of the flange and either dump back into the downpipe or atmosphere. In my case, since I do run a 3" off of the turbo, I would have to drill out a spot close to the flange and come right off of the downpipe. Thoughts and opinions welcome. EDIT: A pic to kind of see what I am talking about. However like I said, it would come out of my downpipe instead of off the flange like pictured.
that would not work. It would be evacuating exhaust gas after the turbine therefore not controlling anything. You would end up with a boost activated mini cut out. The reason you see wastegates coming off of turbo flanges (like the pic you provided) is so they dont have to change their manifold to accommodate an external wastegate. In order for a wastegate to work It has to be able to control the amount of exhaust backpressure the turbo sees. If you mount the wastegate off the downpipe it will not be able to control boost. I hope I read your post correctly.... I apologize in advance if I misunderstood you!
#103957, "RE: Wastegate on downpipe" In response to Reply # 3
Originally posted by taclipse
Originally posted by eclipse982nrRST Hello friends. I was curious to see everyone's opinion on mounting a 38mm wastegate directly onto the downpipe right after the flange on the turbine. Do you think there is any disadvantage on doing this over mounting it coming off of the exhaust manifold? I am up to no good again as most of you know, and looking for a newer style mounting setup and notice that alot of people run a pipe coming off of the downpipe or right off of the flange and either dump back into the downpipe or atmosphere. In my case, since I do run a 3" off of the turbo, I would have to drill out a spot close to the flange and come right off of the downpipe. Thoughts and opinions welcome. EDIT: A pic to kind of see what I am talking about. However like I said, it would come out of my downpipe instead of off the flange like pictured.
that would not work. It would be evacuating exhaust gas after the turbine therefore not controlling anything. You would end up with a boost activated mini cut out. The reason you see wastegates coming off of turbo flanges (like the pic you provided) is so they dont have to change their manifold to accommodate an external wastegate. In order for a wastegate to work It has to be able to control the amount of exhaust backpressure the turbo sees. If you mount the wastegate off the downpipe it will not be able to control boost. I hope I read your post correctly.... I apologize in advance if I misunderstood you!
Yea I know how a wastegate works guys, lol. I was curious to see everyones opinions on this though since I did not quite understand it myself and I notice that a couple of Supra guys run them like this too. Fuck it.
#103958, "RE: Wastegate on downpipe" In response to Reply # 4
Originally posted by eclipse982nrRST
Originally posted by taclipse
Originally posted by eclipse982nrRST Hello friends. I was curious to see everyone's opinion on mounting a 38mm wastegate directly onto the downpipe right after the flange on the turbine. Do you think there is any disadvantage on doing this over mounting it coming off of the exhaust manifold? I am up to no good again as most of you know, and looking for a newer style mounting setup and notice that alot of people run a pipe coming off of the downpipe or right off of the flange and either dump back into the downpipe or atmosphere. In my case, since I do run a 3" off of the turbo, I would have to drill out a spot close to the flange and come right off of the downpipe. Thoughts and opinions welcome. EDIT: A pic to kind of see what I am talking about. However like I said, it would come out of my downpipe instead of off the flange like pictured. http://www.ultraviresmotorsports.com/images/spg-turbo2. jpg
that would not work. It would be evacuating exhaust gas after the turbine therefore not controlling anything. You would end up with a boost activated mini cut out. The reason you see wastegates coming off of turbo flanges (like the pic you provided) is so they dont have to change their manifold to accommodate an external wastegate. In order for a wastegate to work It has to be able to control the amount of exhaust backpressure the turbo sees. If you mount the wastegate off the downpipe it will not be able to control boost. I hope I read your post correctly.... I apologize in advance if I misunderstood you!
Yea I know how a wastegate works guys, lol. I was curious to see everyones opinions on this though since I did not quite understand it myself and I notice that a couple of Supra guys run them like this too. Fuck it.
Mike stop looking at supra forums / pictures. Your car is making big power, but not supra power
So what was your reasoning behind thinking of putting the wastegate on the downpipe. I was giving you the benefit of the doubt that you knew how a wastegate worked, so have you figured out a reason some of the supra guys do it this way? The only thing I can think of is if they were using it as a boost controlled cutout instead of electronic or manual. I actually thought you meant having it dump into the downpipe instead of being an open dump.
I contributed to the Wiki! EVO IX - just a really expensive boost gauge and a K&N air filter 96 Eclipse RS -awaiting registration and inspection 95 Eclipse GS - parts car Mods/Profile - http://www.2gnt.com/index.php?d=cs82685
#103959, "RE: Wastegate on downpipe" In response to Reply # 5
Originally posted by cs82685
Originally posted by eclipse982nrRST
Originally posted by taclipse
Originally posted by eclipse982nrRST Hello friends. I was curious to see everyone's opinion on mounting a 38mm wastegate directly onto the downpipe right after the flange on the turbine. Do you think there is any disadvantage on doing this over mounting it coming off of the exhaust manifold? I am up to no good again as most of you know, and looking for a newer style mounting setup and notice that alot of people run a pipe coming off of the downpipe or right off of the flange and either dump back into the downpipe or atmosphere. In my case, since I do run a 3" off of the turbo, I would have to drill out a spot close to the flange and come right off of the downpipe. Thoughts and opinions welcome. EDIT: A pic to kind of see what I am talking about. However like I said, it would come out of my downpipe instead of off the flange like pictured. http://www.ultraviresmotorsports.com/images/spg-turbo2. jpg
that would not work. It would be evacuating exhaust gas after the turbine therefore not controlling anything. You would end up with a boost activated mini cut out. The reason you see wastegates coming off of turbo flanges (like the pic you provided) is so they dont have to change their manifold to accommodate an external wastegate. In order for a wastegate to work It has to be able to control the amount of exhaust backpressure the turbo sees. If you mount the wastegate off the downpipe it will not be able to control boost. I hope I read your post correctly.... I apologize in advance if I misunderstood you!
Yea I know how a wastegate works guys, lol. I was curious to see everyones opinions on this though since I did not quite understand it myself and I notice that a couple of Supra guys run them like this too. Fuck it.
Mike stop looking at supra forums / pictures. Your car is making big power, but not supra power So what was your reasoning behind thinking of putting the wastegate on the downpipe. I was giving you the benefit of the doubt that you knew how a wastegate worked, so have you figured out a reason some of the supra guys do it this way? The only thing I can think of is if they were using it as a boost controlled cutout instead of electronic or manual. I actually thought you meant having it dump into the downpipe instead of being an open dump.
I was just looking at pics on a Supra site and seen a couple of guys diong that. Whats my thinking behind it? I had no idea, that is why I asked. I have never seen anything like that before and did not understand how it would work, hense why I asked. lol.
#103963, "RE: Wastegate on downpipe" In response to Reply # 5
Originally posted by cs82685 So what was your reasoning behind thinking of putting the wastegate on the downpipe. I was giving you the benefit of the doubt that you knew how a wastegate worked...
Mike D -------------------------------------------------------------------------------------------------
Originally posted by DR1665 You're welcome to all the beer you can drink, but you have to go get it yourself. Don't get pissy when we point to the fridge and tell you to get it yourself.
#103964, "RE: Wastegate on downpipe" In response to Reply # 7
Originally posted by totaleclipse_05
Originally posted by cs82685 So what was your reasoning behind thinking of putting the wastegate on the downpipe. I was giving you the benefit of the doubt that you knew how a wastegate worked...
#103968, "RE: Wastegate on downpipe" In response to Reply # 8
Originally posted by eclipse982nrRST
Originally posted by totaleclipse_05
Originally posted by cs82685 So what was your reasoning behind thinking of putting the wastegate on the downpipe. I was giving you the benefit of the doubt that you knew how a wastegate worked...
#103971, "RE: Wastegate on downpipe" In response to Reply # 0
Originally posted by eclipse982nrRST
Didn't I see the retards at super street doing this on a honduh engine in the latest issue of Project Car?
I was gonna buy the magazine seeing that they were doing a homebrew turbo setup but then they did that and I decided I wasn't going to buy that crap.
maybe they're trying to weed out the stupid ricers?
Erik P. Official 2GNT thread Hijacker Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be... All we know is, He's not The Stig... But he is The Stig's Spartan cousin!
#103973, "RE: Wastegate on downpipe" In response to Reply # 11
I've seen similar setups not quite with a tube like i see pictured but mounting the wg directing on the turbine housing. Yes, an external and yes, it worked.
Goodnight sweetheart...yes its time to go...bum bum bum bum bum...good night sweetheart yes I am one little a$$hole......bum bum bum bum....
#103974, "RE: Wastegate on downpipe" In response to Reply # 12
It could work if the internal wastegate flap were removed and there was a divorce chamber block between the WG outlet and the turbine outlet but I think that would cause excess lag due to the exhaust flowing in places it shouldn't before reaching the turbine wheel.
your average ricer/tuner wouldn't know/think of putting the time and effort to making a perfect divorce block into the downpipe flange and therefore blow shit sky high.
Erik P. Official 2GNT thread Hijacker Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be... All we know is, He's not The Stig... But he is The Stig's Spartan cousin!
#103995, "RE: Wastegate on downpipe" In response to Reply # 13
why not just weld some stainless silverware to it while youre at it just for shits.
that picture shows some of THE WORST exhaust fabrication ive seen. granted, ive seen some horrid balls of shit but that is pretty custom. get er' done!
turbosystems 101, wont work.
_ _ _ _ _ _ _ _ _
96 Black ESi 91 Red TSI AWD (RIP) 02 WRX
"turnin wrenches for nine hours in the pouring rain, just to get the beast up and running again"
Aerospace Certified TIG welder for Precision Castparts in Portland, OR.
#103997, "RE: Wastegate on downpipe" In response to Reply # 14 Jul-20-08 02:41 PM by justins71
I don't see why it would NOT work. The port that feeds the wastegate is tapped before the turbine, where a stock flapper would be. He's just basically moving the flapper however far to his w/g position. It'd work just fine. He's not mounting it to the downpipe itself, that'd be just retarded. EDIT: wait, that is what he's wantin to do... Mike you're a retard. Do it like the pic and you're fine
/>
'95 GS w/ t3/t4b FMIC, diy piping & RFL BOV MS2-Extra Fuel&Spark 50 lb/hr Holley injectors w/ 1:1 RRFPR JE 8.8:1 dish w/ Hastings Rings Eagle Rods w/ ARP bolts ARP Head studs Mild port/polish head 3" custom DP/cat section, 3" PIT catback dual MBC - 12 psi / 20psi
#103999, "RE: Wastegate on downpipe" In response to Reply # 15 Jul-21-08 09:43 AM by RoninEclipse2G
Originally posted by justins71 I don't see why it would NOT work. The port that feeds the wastegate is tapped before the turbine, where a stock flapper would be. He's just basically moving the flapper however far to his w/g position. It'd work just fine. He's not mounting it to the downpipe itself, that'd be just retarded. EDIT: wait, that is what he's wantin to do... Mike you're a retard. Do it like the pic and you're fine

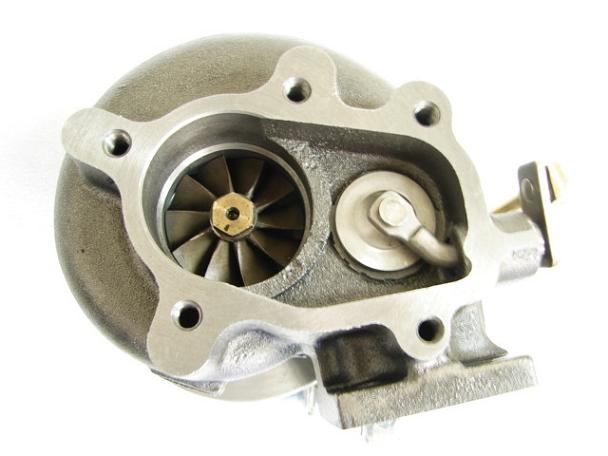

slight problem, the inside of most turbos that have an internal wastegate flap that looks like this
once you remove that flapper, the turbo is never going to spool because everything goes right through the wastegate port to the exhaust downpipe.
that's why I said that you'd have to create a perfect divorce chamber block to seperate the two sections of the housing, otherwise it's retarded and useless.
Erik P. Official 2GNT thread Hijacker Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be... All we know is, He's not The Stig... But he is The Stig's Spartan cousin!
#104000, "RE: Wastegate on downpipe" In response to Reply # 16 Jul-21-08 01:30 PM by justins71
Originally posted by RoninEclipse2G slight problem, the inside of most turbos that have an internal wastegate flap that looks like this (see above pic) once you remove that flapper, the turbo is never going to spool because everything goes right through the wastegate port to the exhaust downpipe. that's why I said that you'd have to create a perfect divorce chamber block to seperate the two sections of the housing, otherwise it's retarded and useless.
yeah, i understand. Mine is one of the more rare flat style, with just a hole through that could use a seperated w/g tube, what i used as a reference.
/>
'95 GS w/ t3/t4b FMIC, diy piping & RFL BOV MS2-Extra Fuel&Spark 50 lb/hr Holley injectors w/ 1:1 RRFPR JE 8.8:1 dish w/ Hastings Rings Eagle Rods w/ ARP bolts ARP Head studs Mild port/polish head 3" custom DP/cat section, 3" PIT catback dual MBC - 12 psi / 20psi
#104001, "RE: Wastegate on downpipe" In response to Reply # 16 Jul-21-08 01:33 PM by mike_d
Originally posted by RoninEclipse2G
Originally posted by justins71 I don't see why it would NOT work. The port that feeds the wastegate is tapped before the turbine, where a stock flapper would be. He's just basically moving the flapper however far to his w/g position. It'd work just fine. He's not mounting it to the downpipe itself, that'd be just retarded. EDIT: wait, that is what he's wantin to do... Mike you're a retard. Do it like the pic and you're fine
slight problem, the inside of most turbos that have an internal wastegate flap that looks like this once you remove that flapper, the turbo is never going to spool because everything goes right through the wastegate port to the exhaust downpipe. that's why I said that you'd have to create a perfect divorce chamber block to seperate the two sections of the housing, otherwise it's retarded and useless.
justins71 is right, it works just fine.
Edit: here is a pick of a T3 housing that shows the port before the turbine.
#104012, "RE: Wastegate on downpipe" In response to Reply # 18
I have alot of learning before I should play with turbos I will be honest I dont know much about how turbos work lol. I previously owned a SOHC Honduh Accord that car was slow...
#104015, "RE: Wastegate on downpipe" In response to Reply # 19
Originally posted by Tuxdreamerx I have alot of learning before I should play with turbos I will be honest I dont know much about how turbos work lol. I previously owned a SOHC Honduh Accord that car was slow...
OK?
Mike D -------------------------------------------------------------------------------------------------
Originally posted by DR1665 You're welcome to all the beer you can drink, but you have to go get it yourself. Don't get pissy when we point to the fridge and tell you to get it yourself.
