#133879, "RE: Flywheel to crank bolts" In response to Reply # 1 Apr-18-11 06:53 AM by streetlightning
Im asking: what to tq the bolts to and in what seq, And i did not see them, there are several posts about them not being in any literature. so the ? Is: what to Tq them to and in what seq.
#133882, "RE: Flywheel to crank bolts" In response to Reply # 2
Originally posted by streetlightning Im asking: what to tq the bolts to and in what seq, And i did not see them, there are several posts about them not being in any literature. so the ? Is: what to Tq them to and in what seq. Not in the chiltons, and nochoads is down.
______________________________ If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.
'95 Eclipse TurboGS (garage deco) '95 TSi AWD (restoring a survivor) '97 Talon ESi-T (poor impulse control) '99 Eclipse RS-T (daily beater) '13 Evo X (mostly stock) '17 Sienna (Middle Aged Dad Mobile)
#133884, "RE: Flywheel to crank bolts" In response to Reply # 4
Originally posted by streetlightning tHank you for the link, i didnt see any fly wheel spec in the the Tq specs in the PDF, nor a tq sequence. am i blind?
Dunno. I never went by the spec. I torque them to "really tight" with a touch of loctite, and I torque them in sequence similar lug nuts, hitting opposing sides in a star pattern.
______________________________ If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.
'95 Eclipse TurboGS (garage deco) '95 TSi AWD (restoring a survivor) '97 Talon ESi-T (poor impulse control) '99 Eclipse RS-T (daily beater) '13 Evo X (mostly stock) '17 Sienna (Middle Aged Dad Mobile)
#133887, "RE: Flywheel to crank bolts" In response to Reply # 8
if you're looking in the FSM, you'll find a few things:

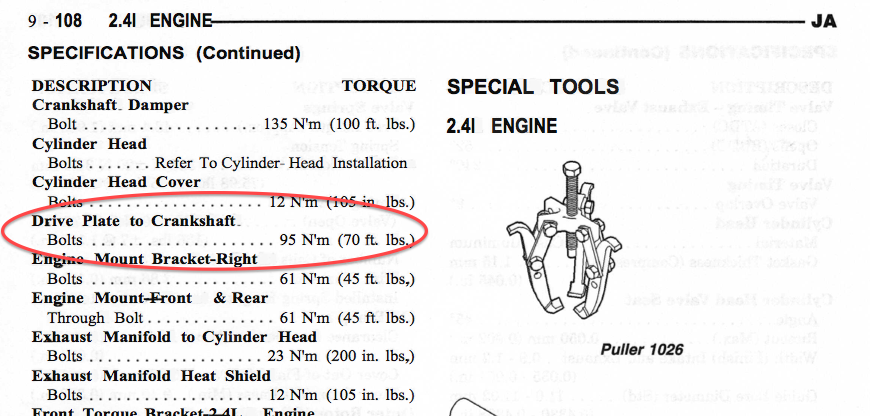

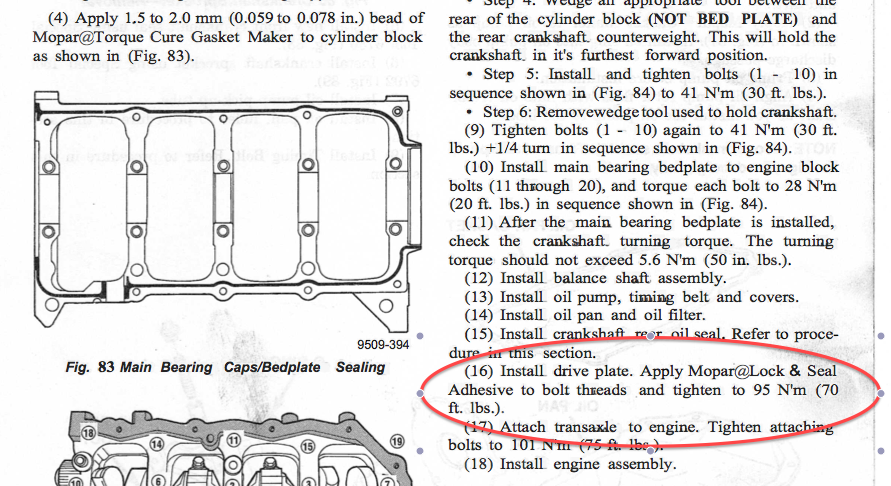

1. make sure you're describing the right part to us. People generally mistake the flexplate to a flywheel. 2. Torque specs are the same for ATX and MTX. 70 ft/lbs. 3. word of advice, clean your bolts w/ alchohol and use red loctite. 4. sequence isn't mentioned, but TQ it over a couple steps on opposite sides of each bolts if that makes u feel better. wouldn't hurt
Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim
#133892, "RE: Flywheel to crank bolts" In response to Reply # 10 Apr-18-11 08:09 AM by 420agreenvilleSC
Originally posted by streetlightning which page? and flywheel and flex plate.. same diff? its not like theres 2 to get them confused with..? all i saw in the fsm was the 55 ft lbs for the clutch or tq converter. i must be blind then lol
haynes is 70, FSM is 55 if i remember right.
Flexplate is the large plate with many teeth on it that the starter gear spins while starting. You use this with ATX and modular MTX clutch setups. A flywheel is essentially the 'flexplate' attached to it, has the same starter teeth on it but is just part of a non-modular clutch setup. Nevertheless, same torque numbers for both.
Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim
#133894, "RE: Flywheel to crank bolts" In response to Reply # 12
Originally posted by streetlightning stock we only came with one type of clutch set up didnt we...?
Early '95 models used a non-modular clutch.
______________________________ If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.
'95 Eclipse TurboGS (garage deco) '95 TSi AWD (restoring a survivor) '97 Talon ESi-T (poor impulse control) '99 Eclipse RS-T (daily beater) '13 Evo X (mostly stock) '17 Sienna (Middle Aged Dad Mobile)
#133897, "RE: Flywheel to crank bolts" In response to Reply # 10
Originally posted by streetlightning which page? and flywheel and flex plate.. same diff? its not like theres 2 to get them confused with..? all i saw in the fsm was the 55 ft lbs for the clutch or tq converter. i must be blind then lol
