Hey,

Picked up all the stuff from the machine shop and all parts are in. So its times to start the thread...

Most of this was the remnants of Slo2g's 420whp turbo car, only machined and fixed after oil pressure dropped. Goal is 170whp.

Bottom end:

Balanced to 10k rpm

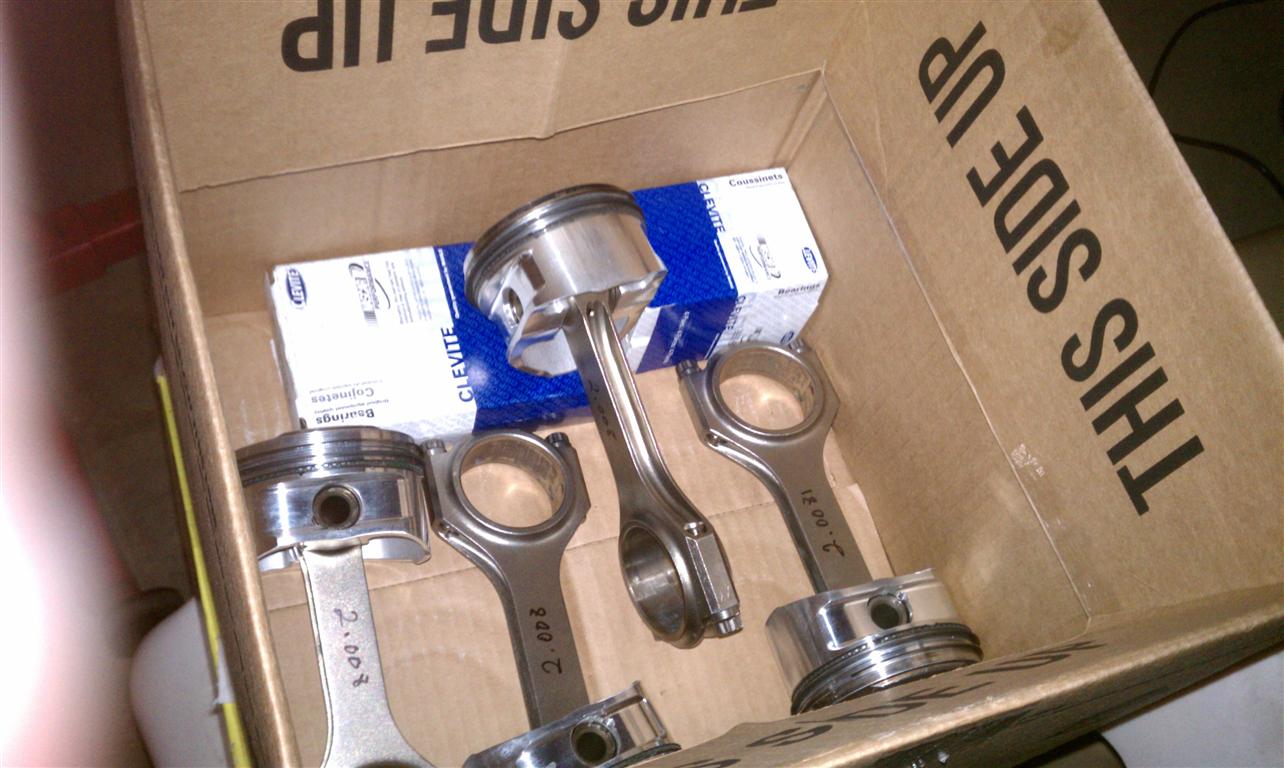

10.5 CP pistons
Eagle rods
ARP main studs

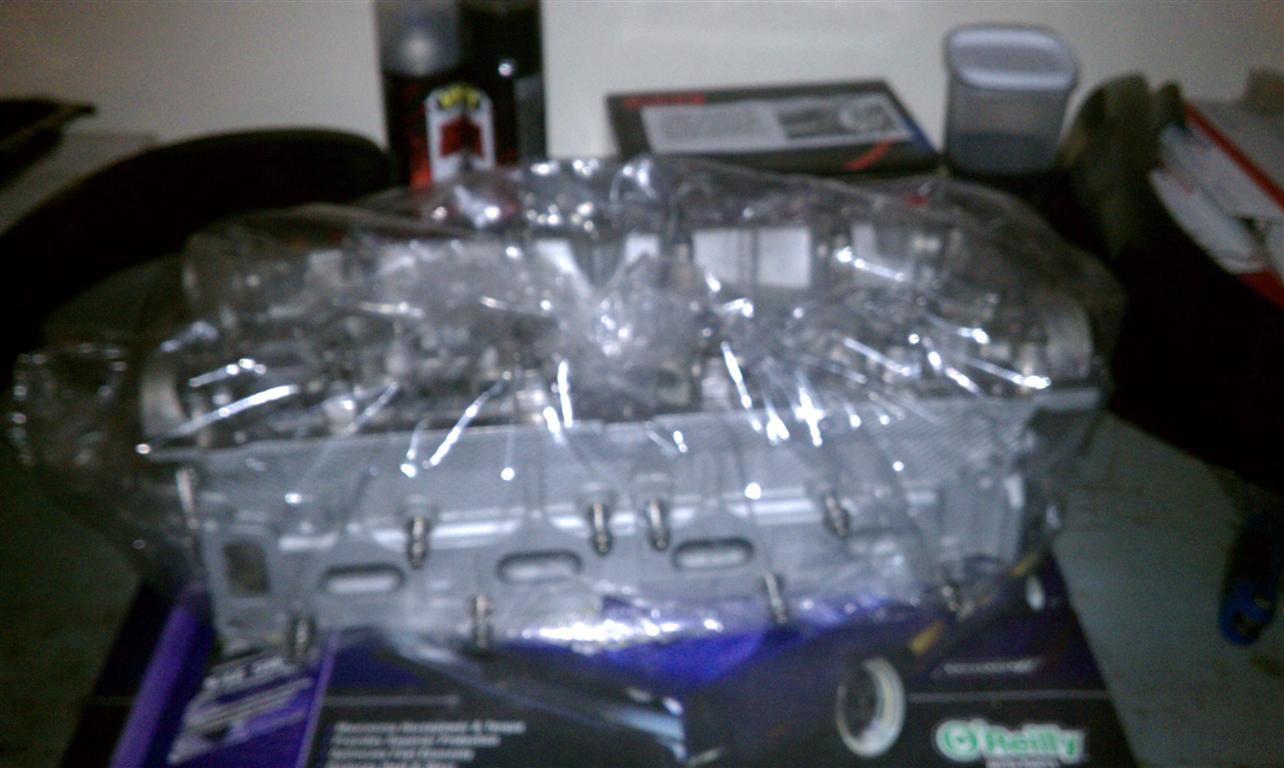

Head:

Slo2g's old head
Ported and polished
+1mm Pep valves
Crower springs and retainers
Crane 18s
Fidanza cam gears
Gates racing timing belt with mechanical tensioner
ARP headstuds

End result on compression should be around 11.2:1. Head has been shaved around 4 times now that we know of. Should be assembled by Friday night, I may pull the motor Saturday. I need to tidy up some wiring and wax the engine bay during the week. So next Friday or Saturday it should be running.

excellent I would like to make a wager...

$20 says you don't make at least 170whp. You get 3 dyno pulls Show me what MSnS can do

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

What's that green bumper in the 3rd pic? Looks like it has some god-awful FMIC trim job :p

---

2012 2500HD LML

And away you go. So you think you took .035 off the head so far? If you wanted to, your machinist could come up with that number. Just look up stock dimension and then measure what you have now.

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

I see you passing 170 wheel with that setup and a good tune. Im at 167 with a 200k stock block, Crower 2s and a quite aggressive tune thanks to mr bullett.

95 Eclipse GS: 10.5:1, Crower 2's and MSII
186 WHP - 150 WTQ
14.697 @ 93.85 MPH......Gone, but not forgotten
99 420A Avenger: Given to my sister
99 GS OZ: Sold
03 Evo 8: Family Car with balls

Nice build.

__
1995 gs Saved from the crusher
1998 RS gone to(Dsm Heaven)
1997 gs gone to Dsm heaven

Good luck Timbo!

1999 Eclipse GS
Built motor
Hahn 16G Turbo w/ FMIC
Hahn Stage 5 Portfueler (270's & 500's)
Zeitronix Zt-2 wideband w/ 3.5bar MAP
3" SS Turbo Back
CM Stage 4 Clutch and Fidanza Flywheel
Baer Big Brake Kit

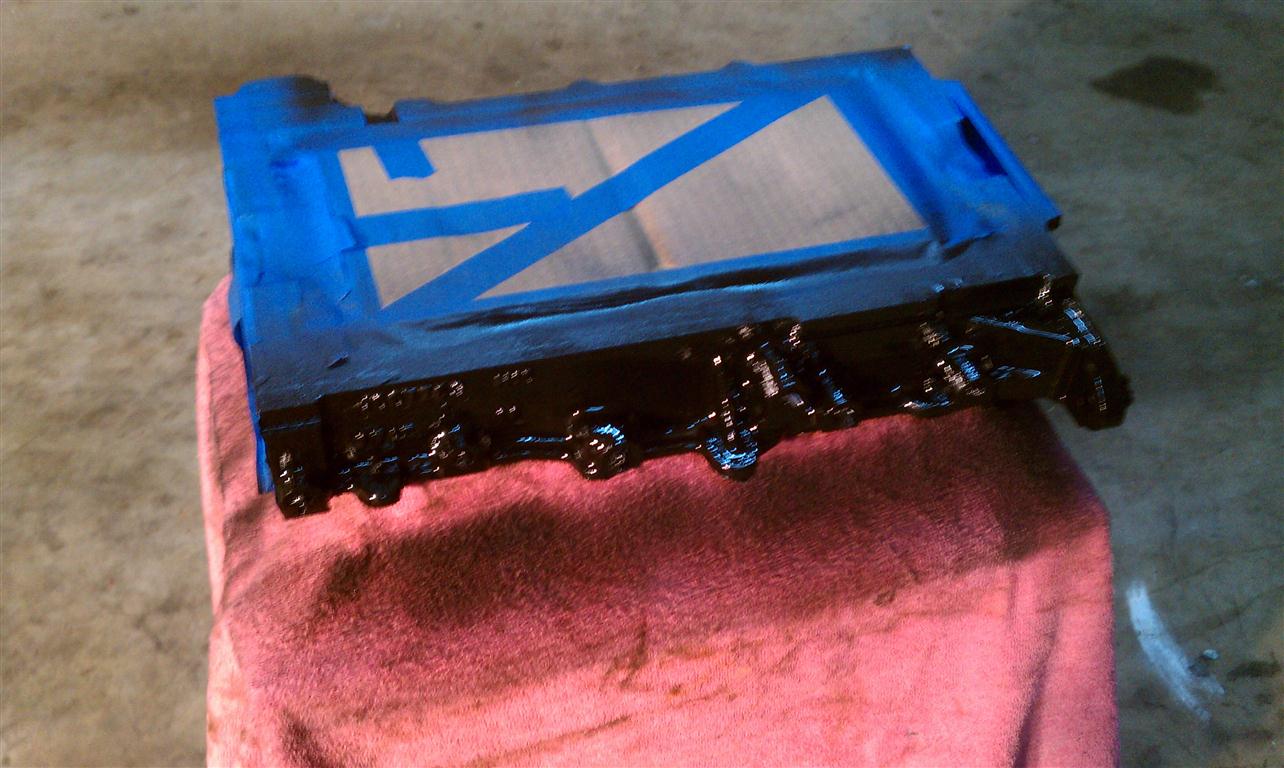

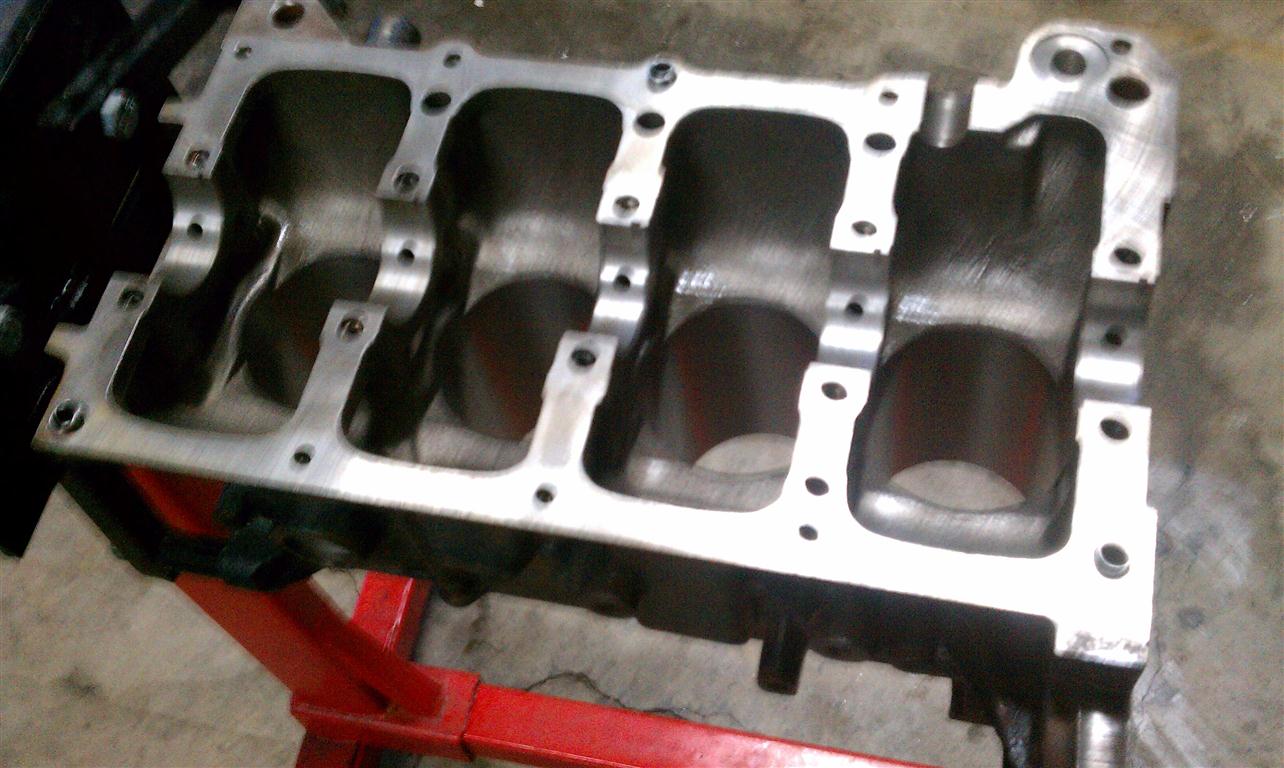

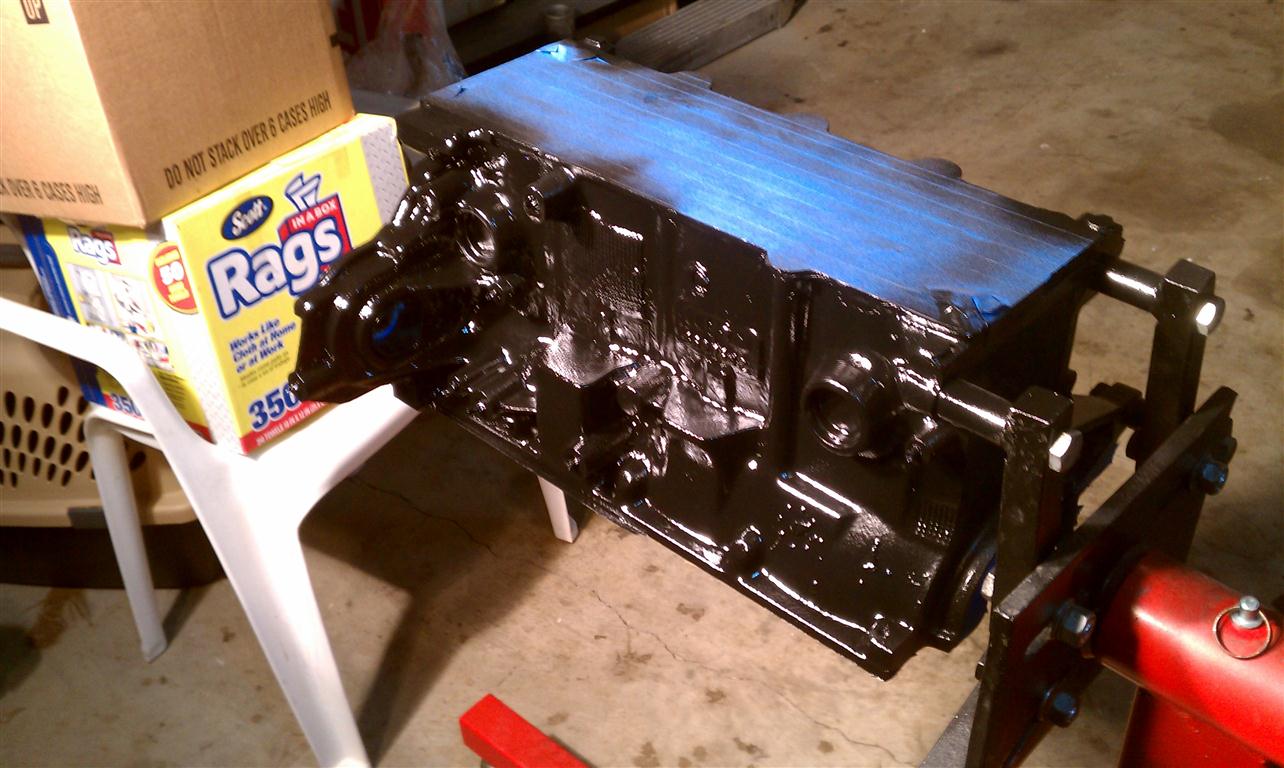

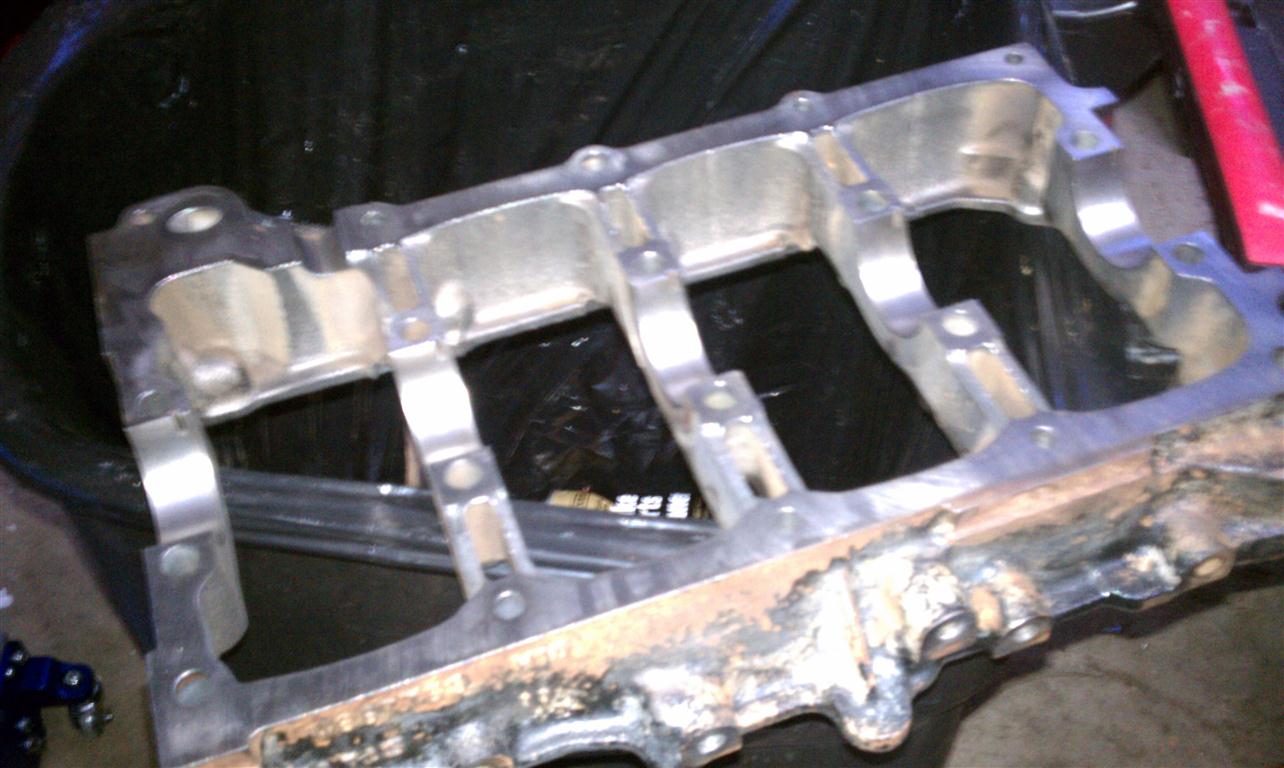

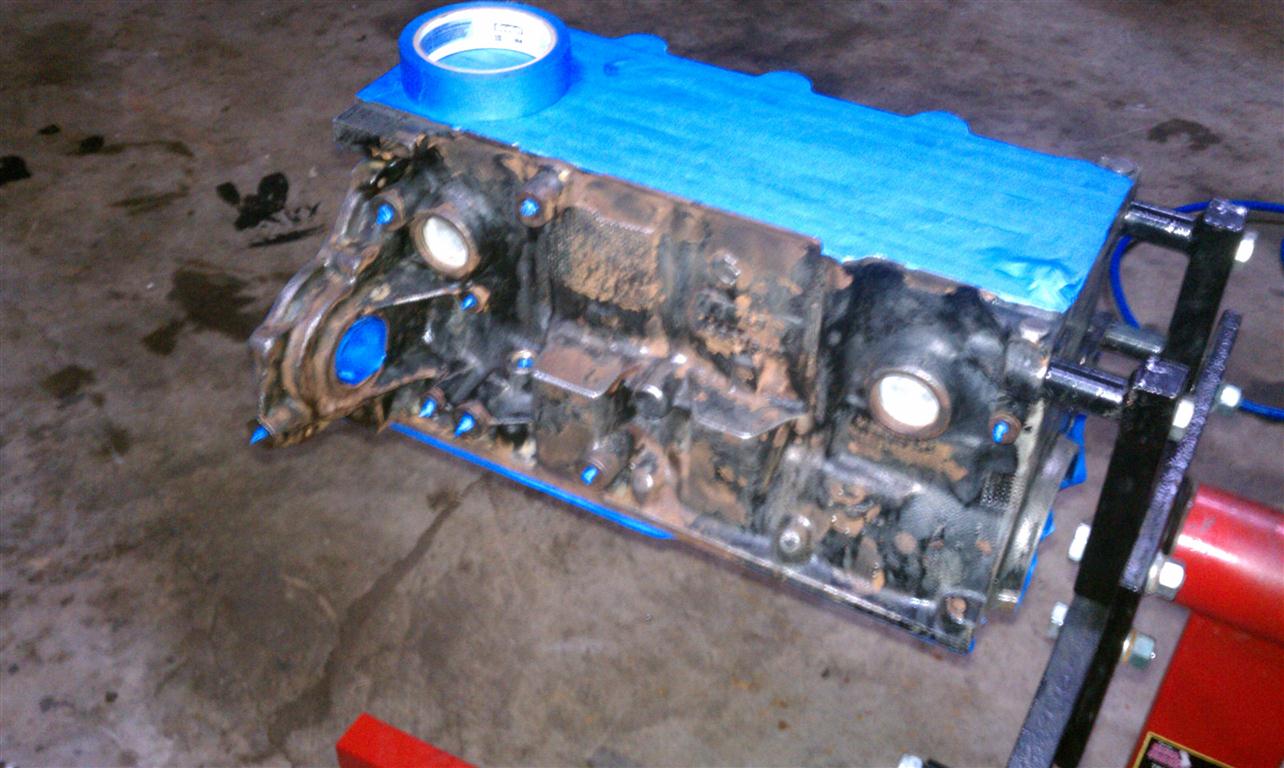

So, spent 5 hours cleaning the block and then masking for paint:

Very nice dude! Do I get to go on a test ride?

I wish I had blown it, believe me, I do...

I can't wait to hear the purty noise that mandy will put out. Dyno vids better be posted.

Erik P.
Official 2GNT thread Hijacker
Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be...
All we know is, He's not The Stig... But he is The Stig's Spartan cousin!

Originally posted by teklein

Originally posted by RoninEclipse2G I can't wait to hear the purty noise that mandy will put out. Dyno vids better be posted.

We will make sure of it. I think that my tuner takes a video of every tune he does, the last pull. Slo2g will know for sure. That will happen in about 6 weeks I think. Ill get you a idle vid though

Erik P.
Official 2GNT thread Hijacker
Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be...
All we know is, He's not The Stig... But he is The Stig's Spartan cousin!

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

95 Eclipse GS: 10.5:1, Crower 2's and MSII
186 WHP - 150 WTQ
14.697 @ 93.85 MPH......Gone, but not forgotten
99 420A Avenger: Given to my sister
99 GS OZ: Sold
03 Evo 8: Family Car with balls

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

Originally posted by teklein

Originally posted by bullettdsm

Originally posted by teklein

Originally posted by 740 turbo brick

Originally posted by bullettdsm

Originally posted by RoninEclipse2G Idle ain't squat. I wanna hear her SCREAM!

What's idle?

LMAO, Cars do that? I havent known what an idle was since MS was installed.

Lol, mine idles perfect. Lots of time into it though.

Hmm, I never raced a car at idle...... (Off Topic: ) Big boner points to Tim (and he knows why). Thanks a bunch

Haha, thanks MB Sorry I missed your call earlier, saw it earlier and thought it was too late to call back.

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

Plastigauged everything, all specs were spot on.

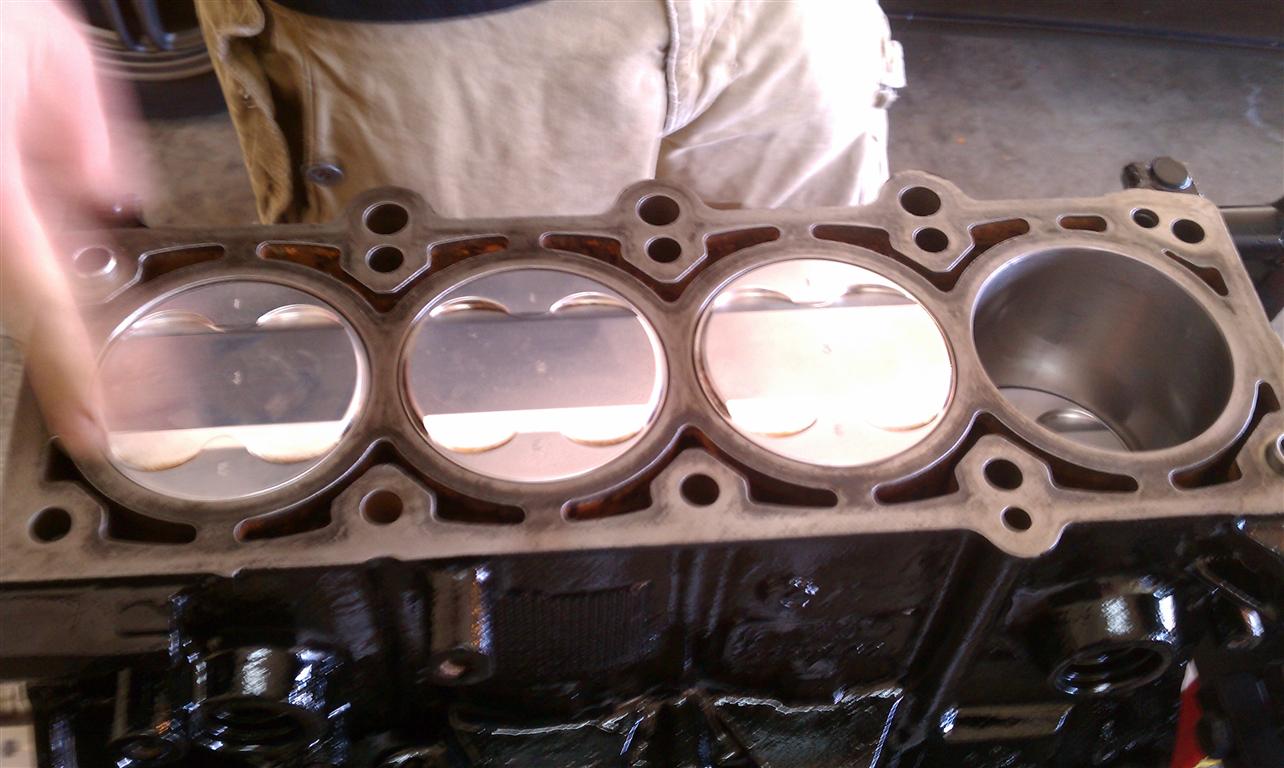

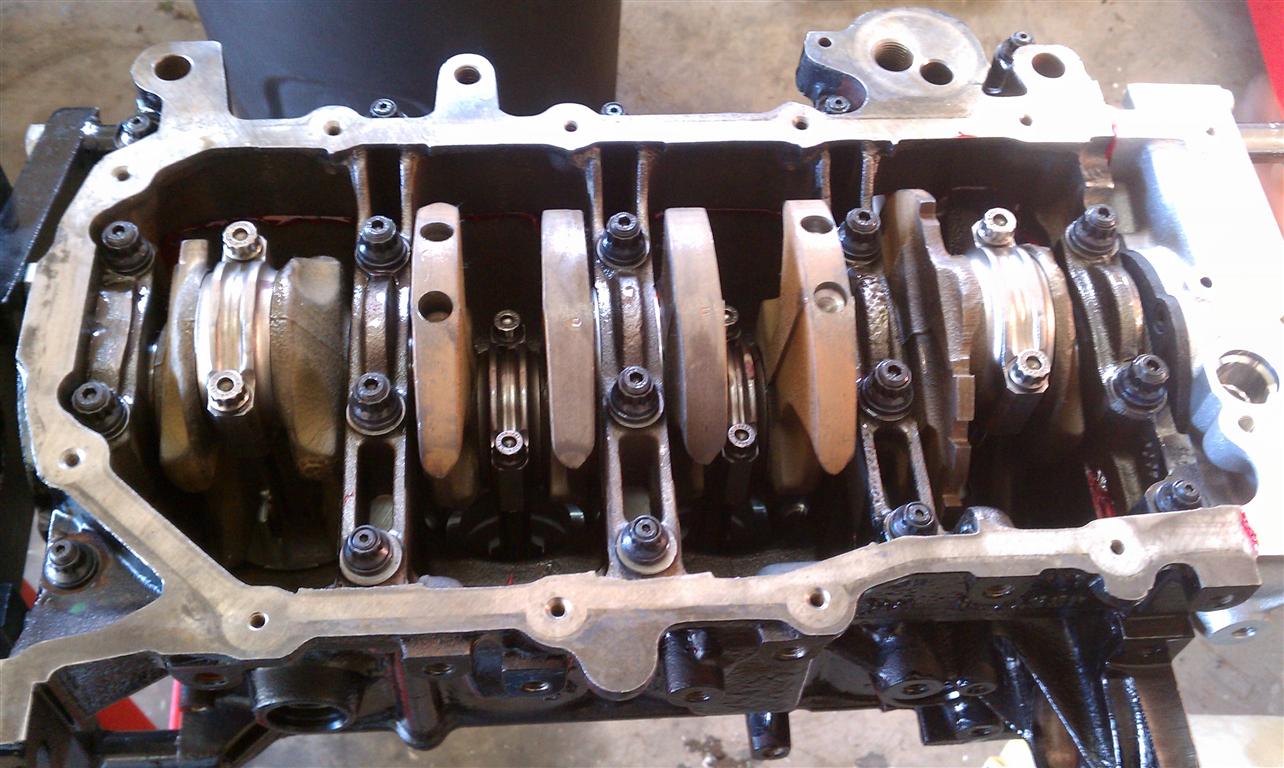

Crank and pistons 2 through 4 are in.

Piston 1's second ring snapped putting it in. Taking it off it was brittle as hell, so that explains it.

New ring set is on the way!

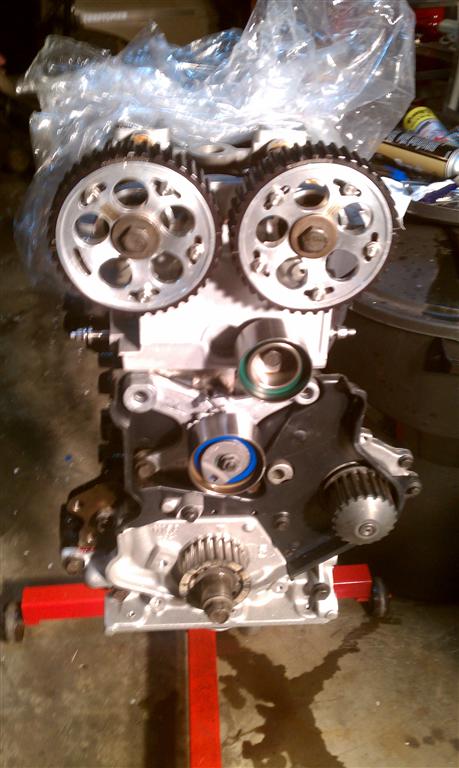

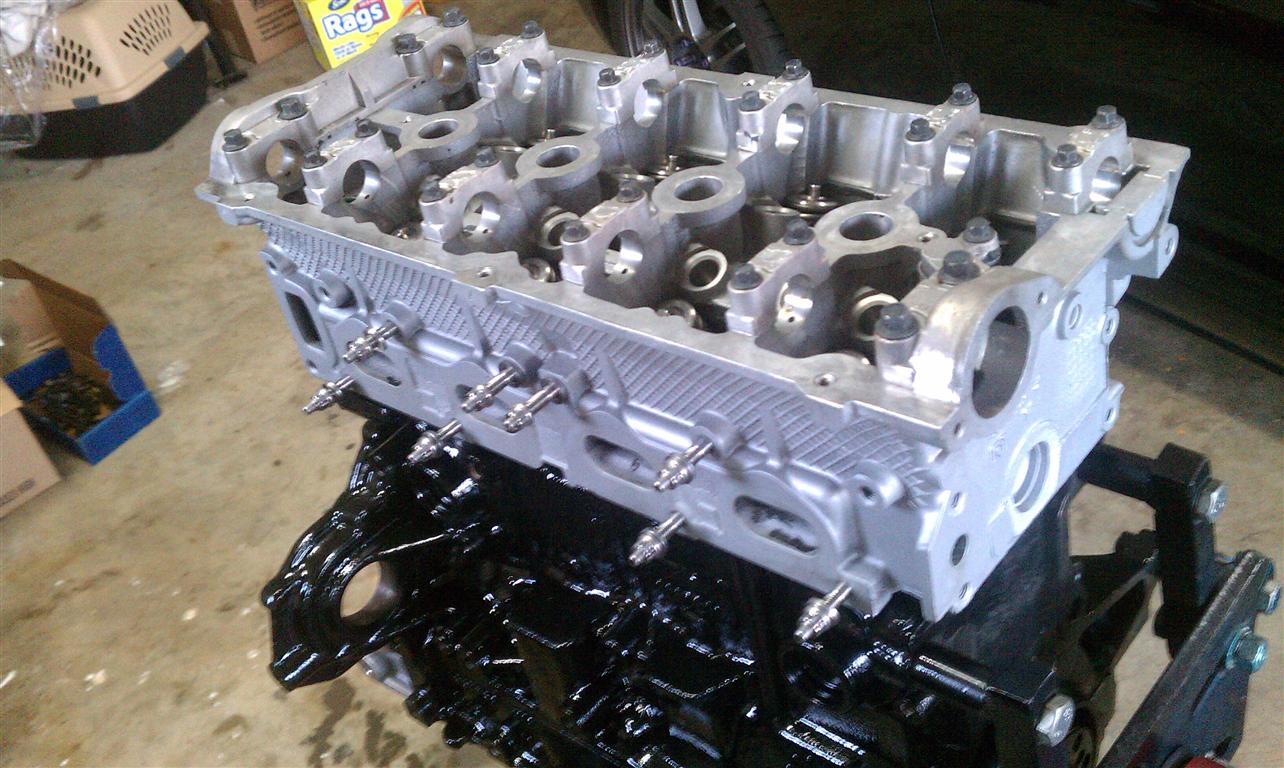

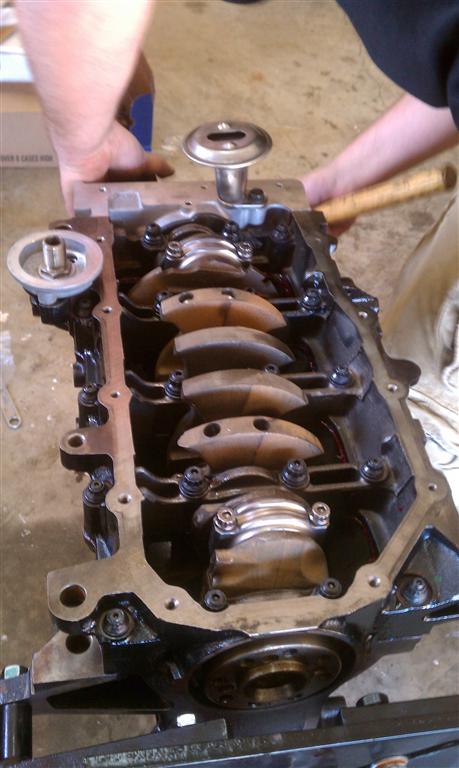

And its almost all together. All I have to do is put the timing belt and water pump on.

*tighten that bolt and i... jizz in ma pants*

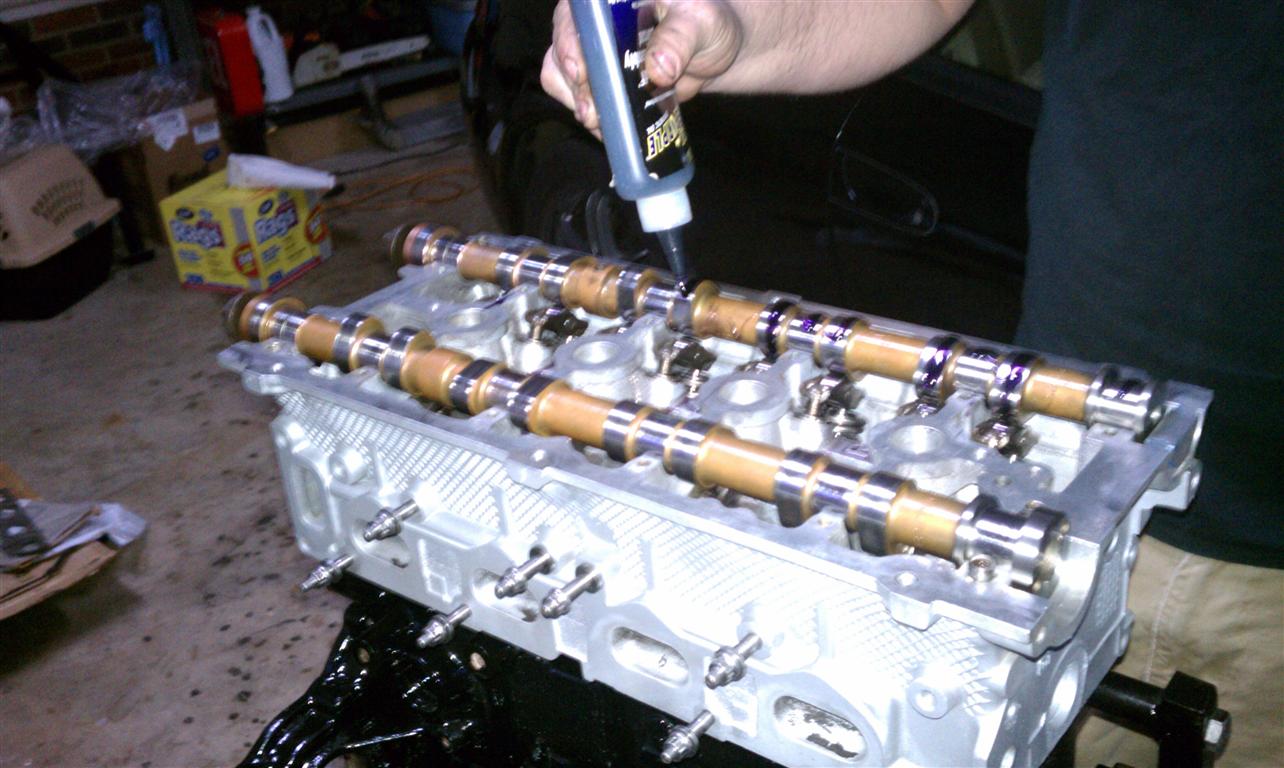

notice the high dollar royal purple assembly lube ladies n' gentlemen... u dont FUCK w/ timmay

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

Looking good man!

2 sets of injectors is better than 1 =)

Tim we need an update!!

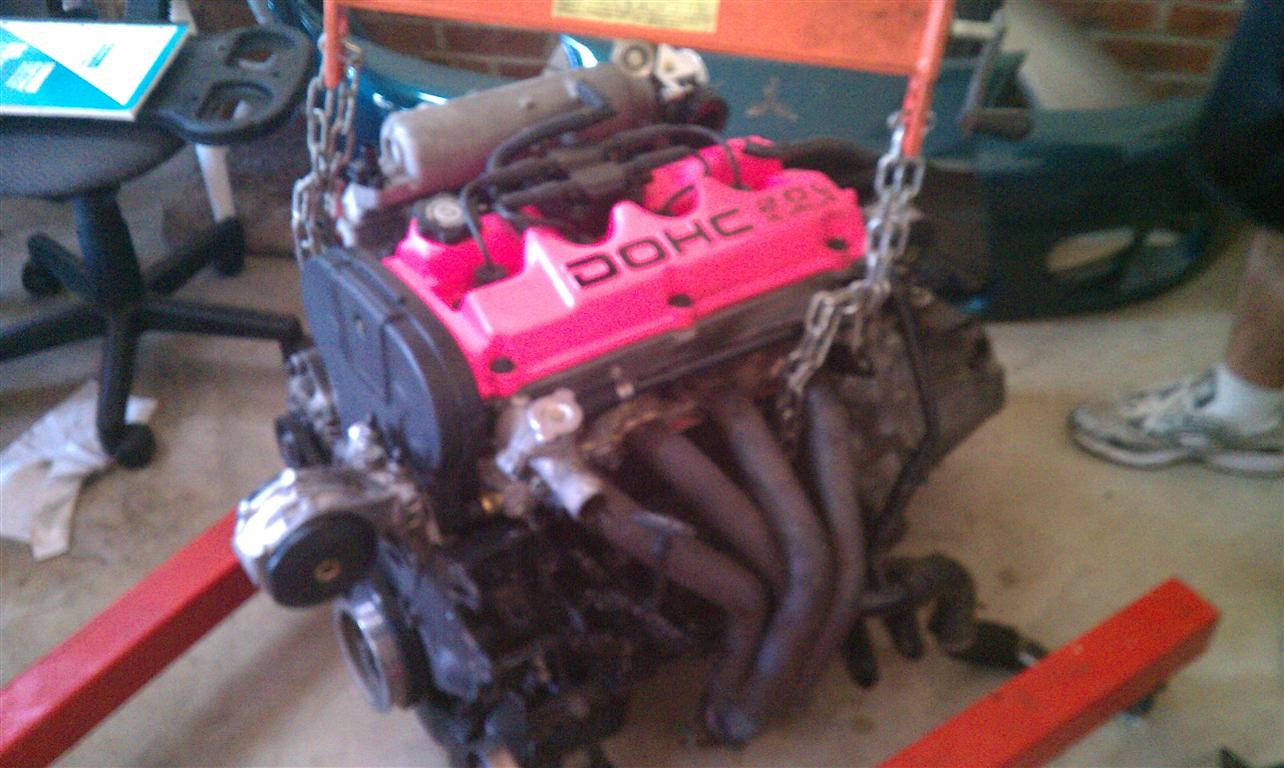

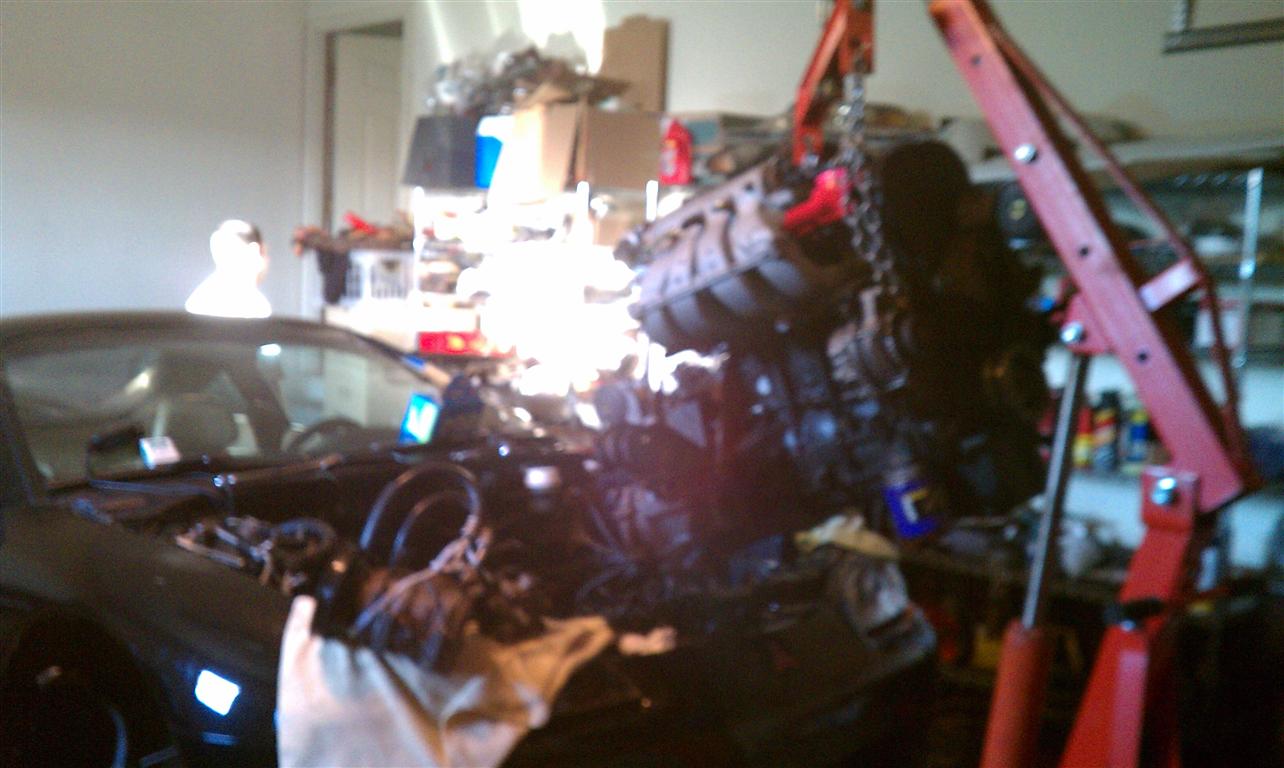

OK, old motor is out and new motor is awaiting transplant!

sweet, we need pics :p

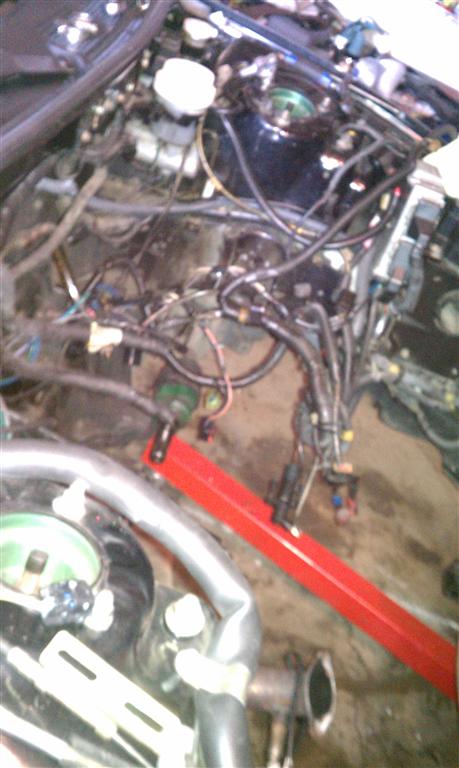

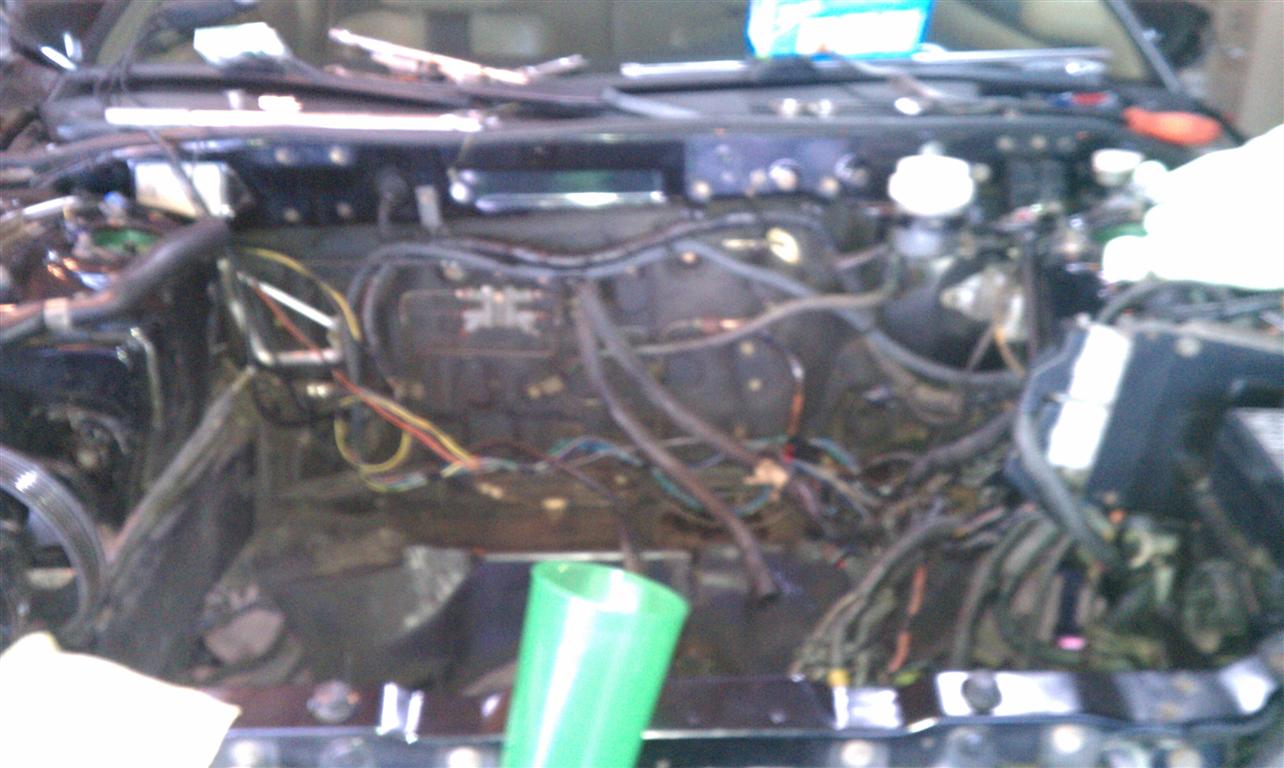

Ok, so new motor is all timed (no pic). Stock motor is out.

Going to loom and clean things up on Friday, by then the axle seals, trans drain plug, and heater hoses should be at Mitsu.

So are mechanical tentioners the way to go then apparently?

95 Eclipse GS: 10.5:1, Crower 2's and MSII
186 WHP - 150 WTQ
14.697 @ 93.85 MPH......Gone, but not forgotten
99 420A Avenger: Given to my sister
99 GS OZ: Sold
03 Evo 8: Family Car with balls

The ears on the hydraulic have been known to break esp with aggressive cams. Not to mention the cost difference of hydraulic vs mechanical.

Nice build...!


Take your time with the bay and clean it real good it will be so much easier to keep clean later I haven't washed mine in like 2 months and it looks really clean only a wipe to keep the dust from collecting. It's nice to have a clean engine bay especially when you work on it regularly and when people say damn that's clean and you are like... I havent cleaned that in more than a month...! lol

Status- Need to do break-in...



Try not to challenge me, I'd rather tie up than lose. Either way you NEVER WIN.... - Me..

Erik P.
Official 2GNT thread Hijacker
Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be...
All we know is, He's not The Stig... But he is The Stig's Spartan cousin!

96 RS
95 Toyota pickup - 8" lift, 33's (sold)
07 Toyota tacoma - TRD Sport
13 Ford Fusion

I like logic more when it travels in circles.

Erik P.
Official 2GNT thread Hijacker
Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be...
All we know is, He's not The Stig... But he is The Stig's Spartan cousin!

5 bucks says Tim's on a forum for his phone and is working on a rebuild wiki for it as we speak... or at least thought about it.

http://androidforums.com/motorola-droid/58861-blurry-pictures-droid-camers.html
Don't say I never did anything for you.

96 RS
95 Toyota pickup - 8" lift, 33's (sold)
07 Toyota tacoma - TRD Sport
13 Ford Fusion

I like logic more when it travels in circles.

pics
video
oil, coolant, trans, PS, brake fluid analysis needed

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

Originally posted by teklein
Oh yeah guys, car runs

Erik P.
Official 2GNT thread Hijacker
Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be...
All we know is, He's not The Stig... But he is The Stig's Spartan cousin!

Originally posted by RoninEclipse2G

Originally posted by teklein Oh yeah guys, car runs

Video or it didn't happen.

96 RS
95 Toyota pickup - 8" lift, 33's (sold)
07 Toyota tacoma - TRD Sport
13 Ford Fusion

I like logic more when it travels in circles.

i still wanna see vids. GOOD ONES

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

New pics and a video or its all BS!!

Erik P.
Official 2GNT thread Hijacker
Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be...
All we know is, He's not The Stig... But he is The Stig's Spartan cousin!

http://forums.2gnt.com/dcboard.php?az=show_topic&forum=5&topic_id=133616&mesg_id=133616&page=

Erik P.
Official 2GNT thread Hijacker
Some say that he's driven over more Covenant than he's shot, and that his grenades aren't where you'd expect them to be...
All we know is, He's not The Stig... But he is The Stig's Spartan cousin!

it runs. drove it friday night. idle's all fucked up though, thanks to the amazing tuning abilities of www.tdcauto.com 's awesome tuner

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

So...

Did a comp test trying to figure out all these weird issues I am having.

160-145-150-180

Weird huh? On a high comp ass motor with a ridiculous ass shaved head?

Because teklein is a dumbass thats why.

88.5mm rings is for .040 pistons.

teklein has .020 pistons.

On the plus side, I made good numbers on a shitty ass ringed block.

Order rings, re hone, put back together.

Ha, that would piss me off. GET A VIDEO THIS TIME!

95 Eclipse GS: 10.5:1, Crower 2's and MSII
186 WHP - 150 WTQ
14.697 @ 93.85 MPH......Gone, but not forgotten
99 420A Avenger: Given to my sister
99 GS OZ: Sold
03 Evo 8: Family Car with balls

omg................................... LMFAOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOO ok.. wheeewww, im done omg lmaooooooooooooooo no im nottttttt loll ok im seriously done now

tim, im not sure if you can take off that head and reuse it if it cant be milled again.. even when slightly releasing torque in reverse sequence, the head can slightly warp. just wanted to say that, so when you remove it, have it looked at for flatness, and have a back up if it does warp

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

"teklein Is A Dumbass."
That is all

97 Talon ESi 14.943@91.35MPH N/A!
"If you need someone to provide an itemized build of materials and a flowchart to walk you through every build-related question you will need to answer at each step of the process, you shouldn't be playing with cars. "-Driggs

He can reuse the head even if it is warped, just means the valves need to be taken out to mill it (6)!

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

Dude, the fact that you still put out the numbers you did is now even more impressive.

I cant wait till you rebuild and dyno again!

______________________________
If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.

'95 Eclipse TurboGS (garage deco)
'95 TSi AWD (restoring a survivor)
'97 Talon ESi-T (poor impulse control)
'99 Eclipse RS-T (daily beater)
'13 Evo X (mostly stock)
'17 Sienna (Middle Aged Dad Mobile)



Factory Service Manuals: http://nawdu.de/files/

I think it depends on how hot the motor got, of course you can always take it off in small increments and check it with a straight edge to be sure.

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

What a cock tease...

97 Talon ESi 14.943@91.35MPH N/A!
"If you need someone to provide an itemized build of materials and a flowchart to walk you through every build-related question you will need to answer at each step of the process, you shouldn't be playing with cars. "-Driggs

Thanks Zac!

And yeah, theres a vid. It runs

___________________________________________



http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim
