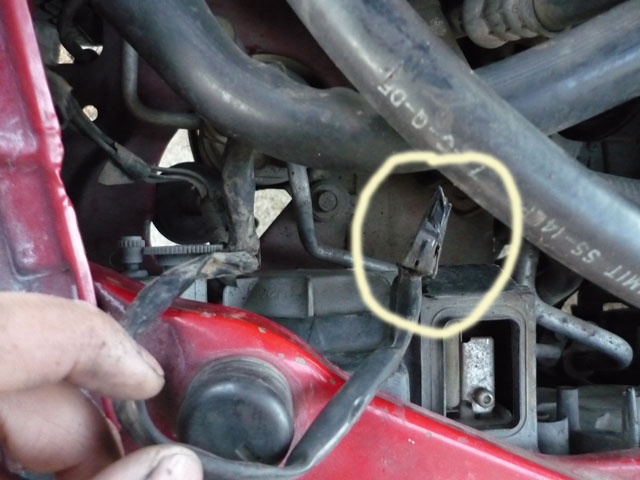

I believe this is unrelated to the problem I have posted in another thread which is why I'm making a new thread. Circled yellow is a connector coming from the passenger side area near the bumper, coming from a series of wires that connect to the turn signal light. It is burnt which is why it looks odd, but there are three wires connecting to it. Please help me identify it! I have a 95 rs so I believe I don't have an evap purge solenoid (please confirm this). Thanks.

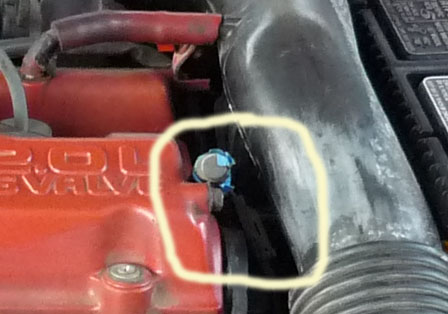

Also, is my camshaft position sensor supposed to connect to the valve cover with a solid metal cylinder as circled in yellow below...blue tape is from previous owner.

Not sure about the first one.

However the second one IIRC is supposed to be bolted near the starter on the block, it evidently broke off at some point and someone taped it there.

Is that connector is the same little harness as the a/c pressure switch connector? If so, it's your low-coolant sensor connector, though it only has 2 wires. That's just where it looks like it runs from the pic... The cylinder is a noise-cancelling capacitor. Not required, but it's supposed to clean up the signals to the ECM.

/>

'95 GS w/ t3/t4b
FMIC, diy piping & RFL BOV
MS2-Extra Fuel&Spark
50 lb/hr Holley injectors w/ 1:1 RRFPR
JE 8.8:1 dish w/ Hastings Rings
Eagle Rods w/ ARP bolts
ARP Head studs
Mild port/polish head
3" custom DP/cat section, 3" PIT catback
dual MBC - 12 psi / 20psi

They are the same, and the sensor is located on the bottom. You can just pull the container up (it's just slipped on a piece of metal) to check out the sensor. The connector should be attached to the vehicle-front side of it.

/>

'95 GS w/ t3/t4b
FMIC, diy piping & RFL BOV
MS2-Extra Fuel&Spark
50 lb/hr Holley injectors w/ 1:1 RRFPR
JE 8.8:1 dish w/ Hastings Rings
Eagle Rods w/ ARP bolts
ARP Head studs
Mild port/polish head
3" custom DP/cat section, 3" PIT catback
dual MBC - 12 psi / 20psi

The little barrel is just a suppresor device for radio interference. It is normally attatched to the block by the starter. Don't even need it (I don't have one on two of my cars) but you can move it back down to block.

The "Partheon" is your coolant system. I'm a little confused about what you have and don't have. You need the coolant overflow bottle, otherwise the system will not be able to expand (or you will end up low coolant because it has leaked out all over the ground at one point. Thus causing the Partheon to appear).

Best bet is to take a pic of the passenger side area in your engine bay, so we can see whats going on with the top of the thermostat housing and the coolant bottle.

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

Ok, looks like I don't have the overflow bottle with the sensor attached, which is why I have my leftover connector. Ebay has one for sale for $100, which seems rediculous. Any recommendations of where to buy a replacement? Thanks for your replies guys, I appreciate it.

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

Some years came with Overflow reservoirs that had the low coolant sensor, and some years didn't.

I've found that 95/96's came with the sensor, while the 97+ didn't.

95 Avenger 2.0 - Hahn 16g, DMS 8 injector setup, UDP, Big FMIC, HKS SSQV, MSD Coil & Wires,
ZEX Nitrous System, QTP Cut Out, Mandrel 2.5" Exhaust with cat delete, MP 60mm TB...and tons of Carbon Fiber

The sensor tends to be a leaky bitch too.

If you need a coolant overflow bottle, PM me, I have one available.
