Subject: "The build."

Previous topic | Next topic

eclipse982nrRST	Oct-09-08 09:21 AM
Member since Mar 16th 2004 6314 posts,

#110205, "The build."

Word is out and a lot of people know, so, here it is. The secret is a 2.2L stroker. Yes, thats what I have been up to. So, here are a few pics from today's work. Did not get very much done.

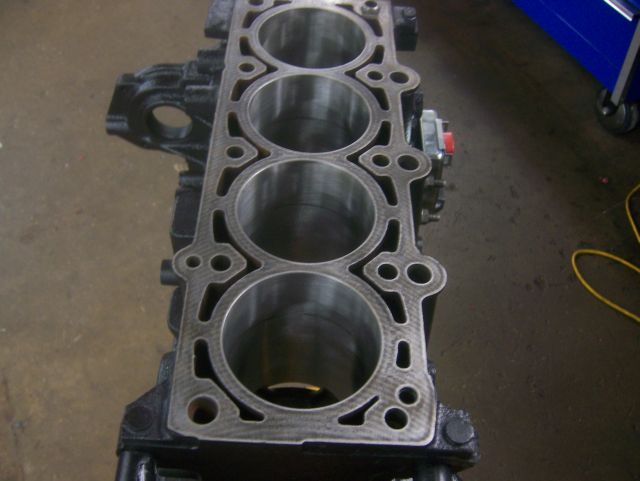

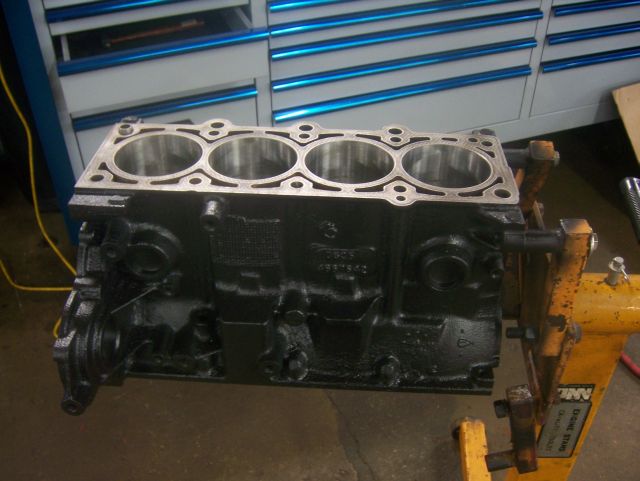

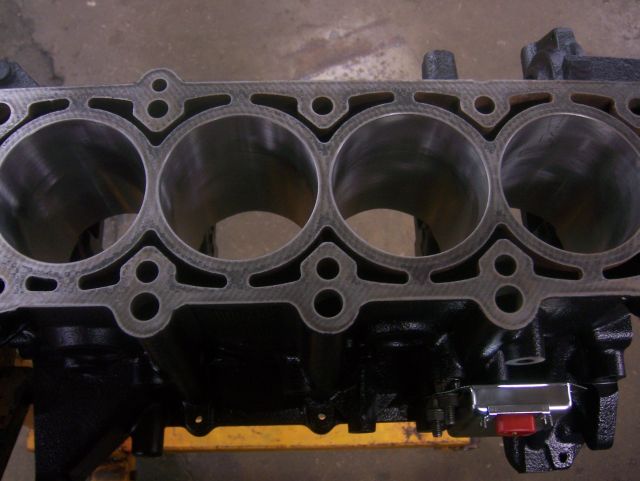

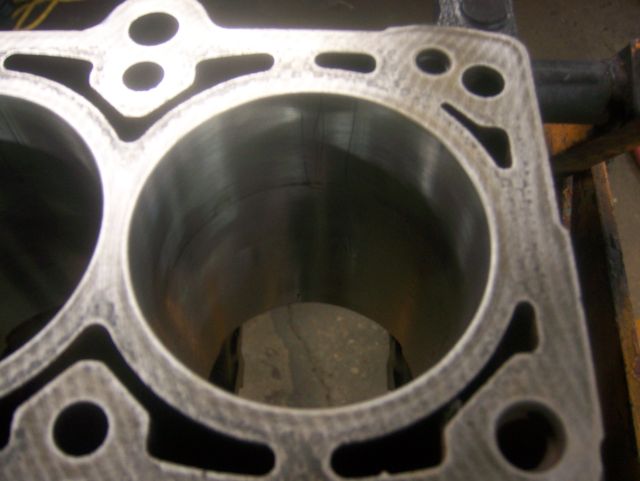

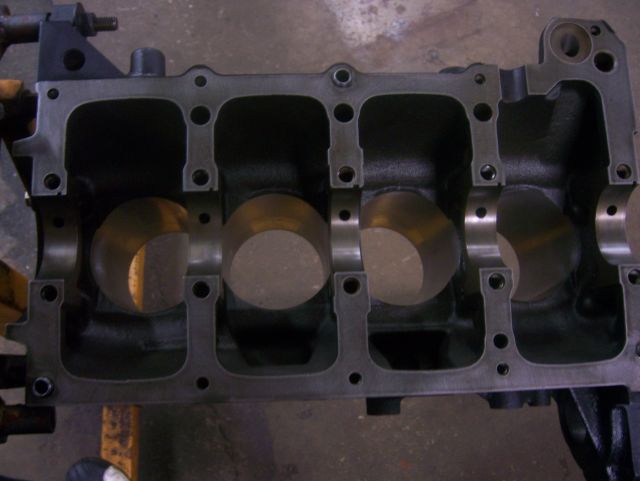

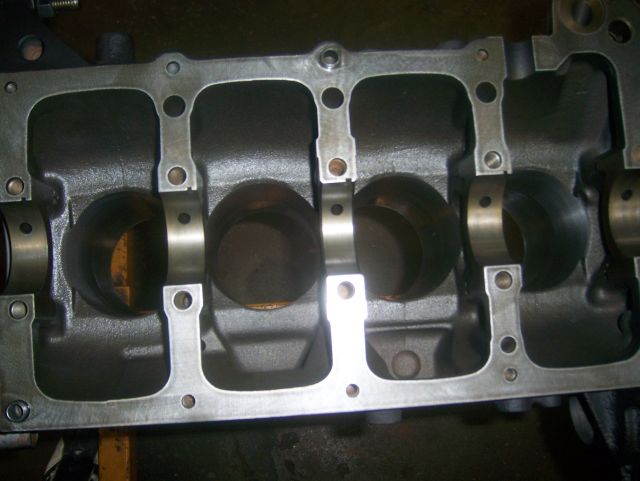

Few pics of the block. 95' block bored 40 over and honed, was completely degreased and checked for cracks and everything. The rotating assembly was balanced as well. Crank is the Callies custom stroker crank. Eagle Rods, JE 8.8:1 pistons and total seal rings.

So, next was to start assembling this hog. Got the lower set of bearings in, went to put the top in and noticed the notch was on the wrong side! I never knew that the 95 bedplates were nocthed differently. So, besides waiting another week for another set of bearings to use, why not just notch the bedplate yourself? I am supposed to be a professional right? lol. So, yes, I notched it myself.

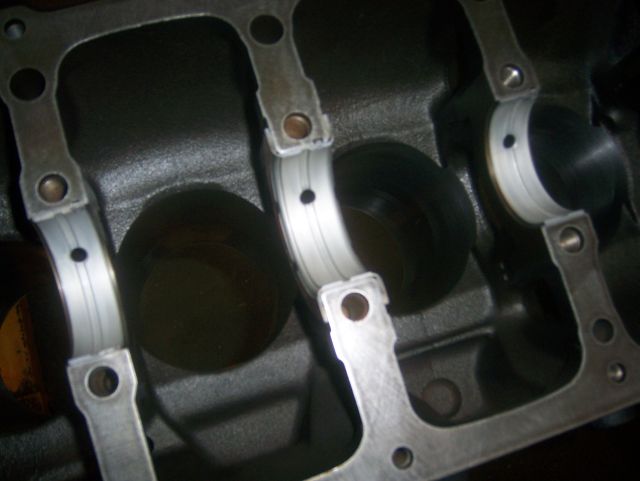

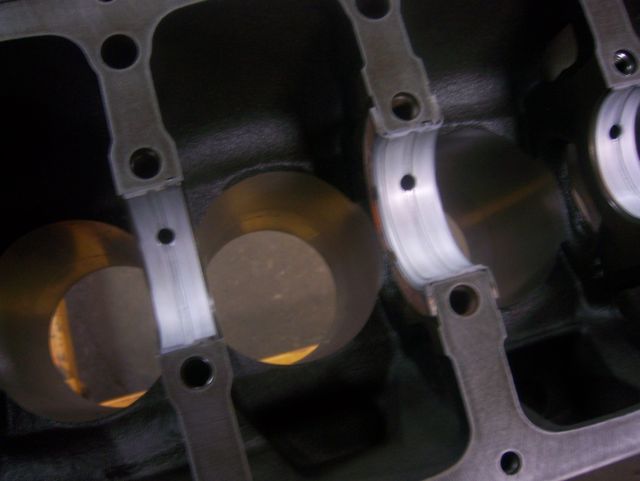

Bearings in.

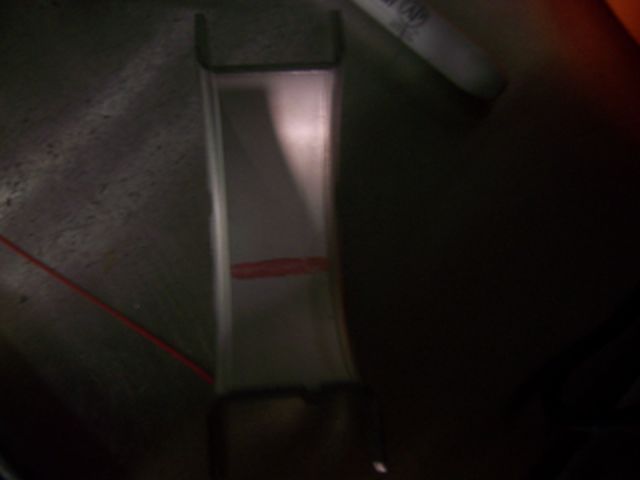

Went ahead and plastigaged everything to make sure all my clearences were okay.

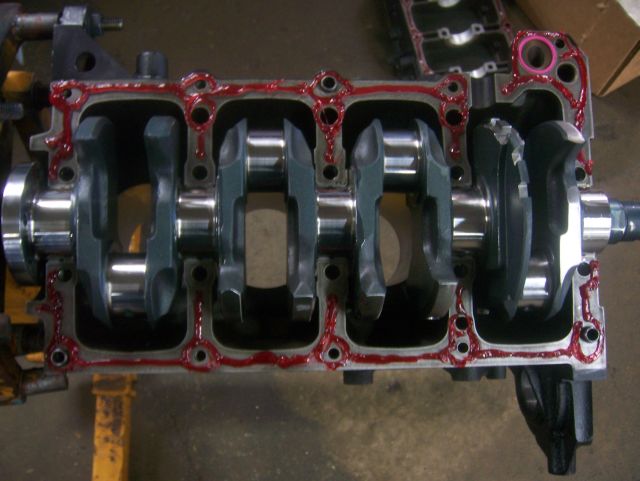

Then went ahead and put the crank in, put my gasket sealer around the block and this time, i did not forget the ORING!!!!

I will get some more pics tomorrow of the bedplate bolted up. I also started to try and get the pistons in the walls, but I am having some issues. The oil rings slide right in but as soon as I get to the 2nd compression ring, it gets VERY tight. I did not like it, so I called it a day. I go back to work tomorrow, so we will see if I can squeeze them in...

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

Replies to this topic

RE: The build., Moderator

Moderator

bullettdsm, Oct-09-08 09:45 AM, #1

RE: The build., djtrickee, Oct-09-08 10:07 AM, #2

RE: The build., SilvrEclips, Oct-09-08 10:20 AM, #3

RE: The build., 420agreenvilleSC, Oct-09-08 10:30 AM, #4

RE: The build., eclipse982nrRST, Oct-09-08 11:21 AM, #5

RE: The build., Moderator

Moderator

teklein, Oct-09-08 11:55 AM, #6

RE: The build., eclipse982nrRST, Oct-09-08 12:10 PM, #7

RE: The build., foggy45, Oct-09-08 12:44 PM, #8

RE: The build., barza21, Oct-09-08 02:17 PM, #9

RE: The build., 1slw97, Oct-09-08 04:18 PM, #10

RE: The build., 96TurboGS, Oct-09-08 07:32 PM, #11

RE: The build., Flipboi89, Oct-10-08 10:30 AM, #12

RE: The build., eclipse982nrRST, Oct-12-08 07:14 AM, #13

RE: The build., adammethner2005, Oct-13-08 12:56 PM, #14

RE: The build., talonesiracing, Oct-13-08 06:01 PM, #15

RE: The build., eclipse982nrRST, Oct-16-08 04:39 AM, #16

RE: The build., Moderator

Moderator

bullettdsm, Oct-16-08 09:56 AM, #17

RE: The build., stracer107, Oct-16-08 03:21 PM, #18

RE: The build., 97AllMtr, Oct-13-08 08:16 PM, #19

RE: The build., thormx353, Oct-16-08 03:22 AM, #20

RE: The build., Moderator

Moderator

teklein, Oct-16-08 06:41 AM, #21

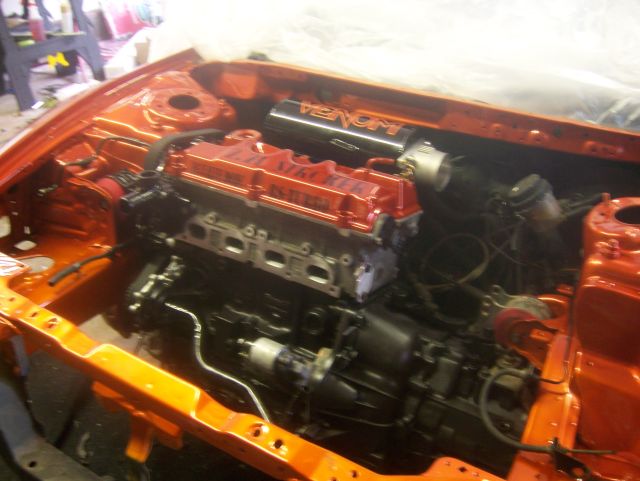

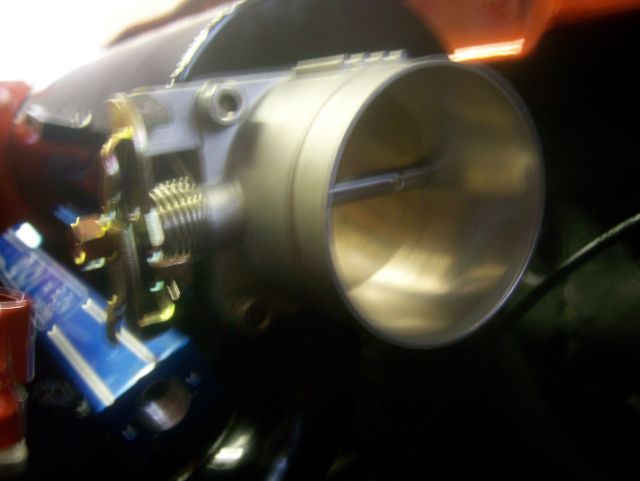

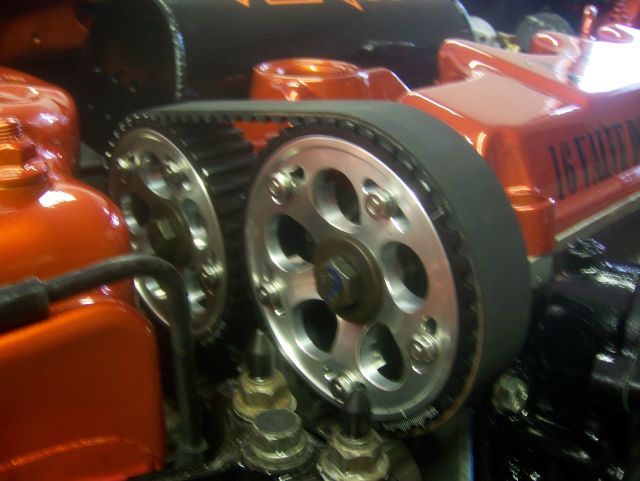

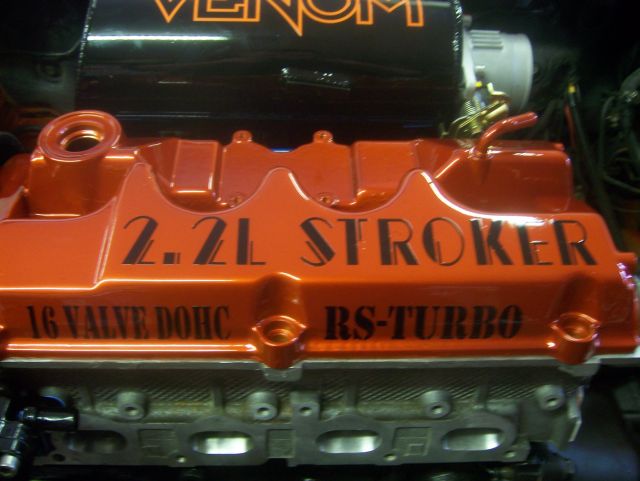

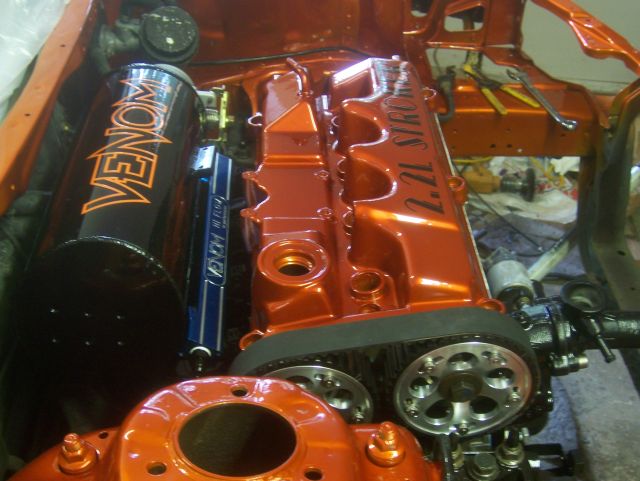

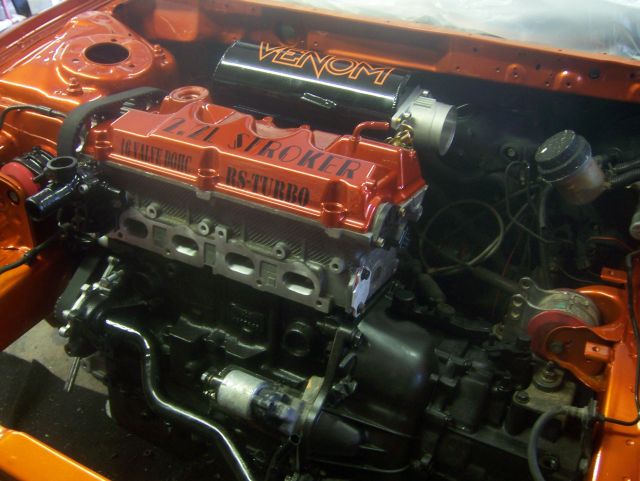

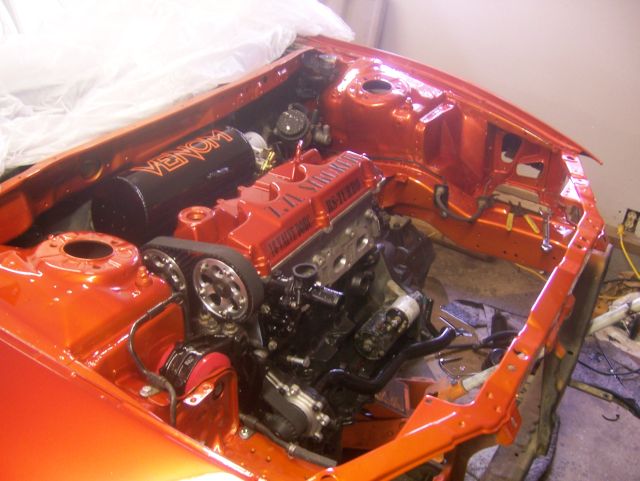

Motor is in !!!, eclipse982nrRST, Oct-17-08 09:43 AM, #22

RE: Motor is in !!!, SilvrEclips, Oct-17-08 10:01 AM, #23

RE: Motor is in !!!, eclipse982nrRST, Oct-17-08 10:14 AM, #24

RE: Motor is in !!!, 420agreenvilleSC, Oct-17-08 10:38 AM, #25

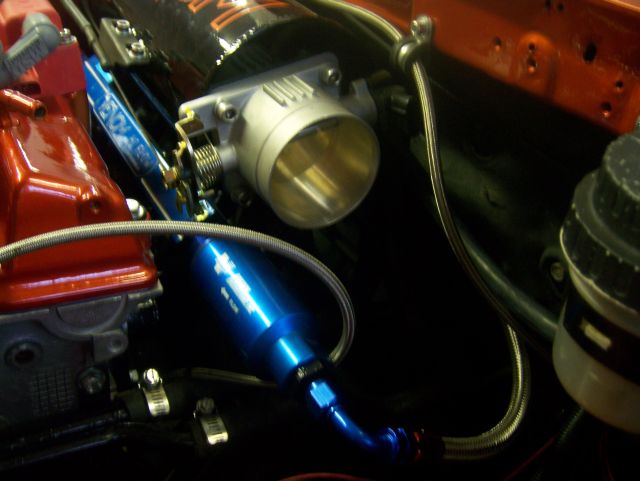

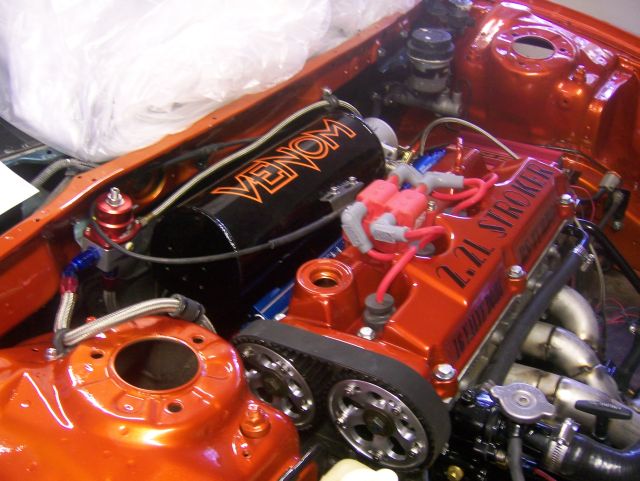

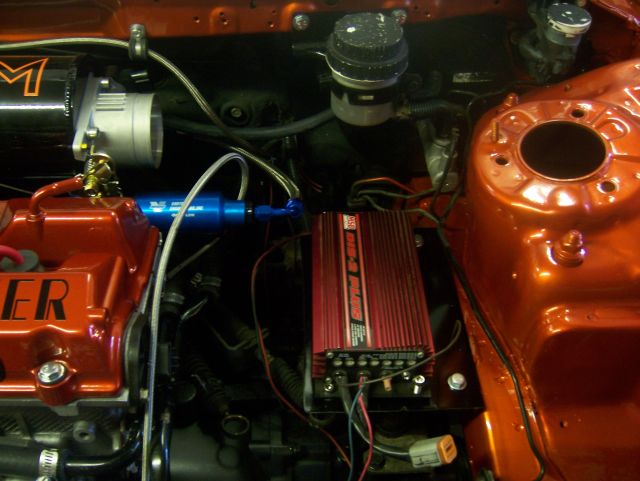

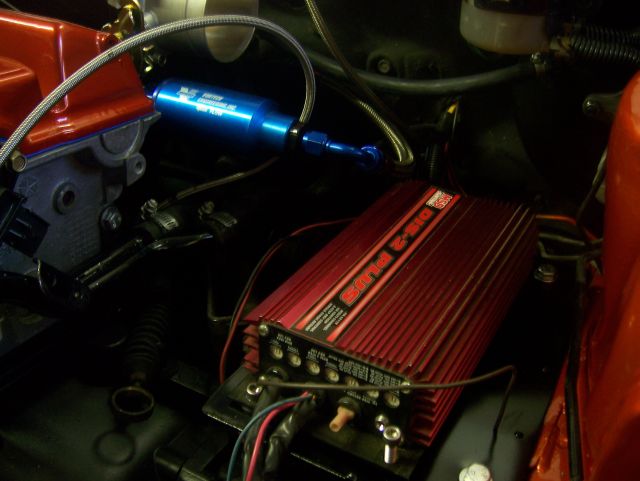

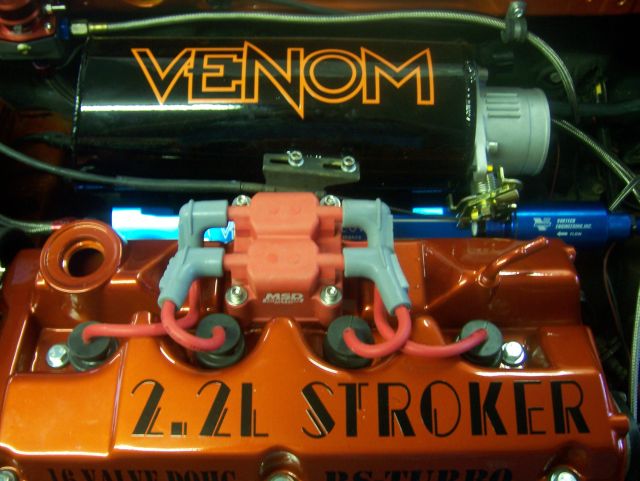

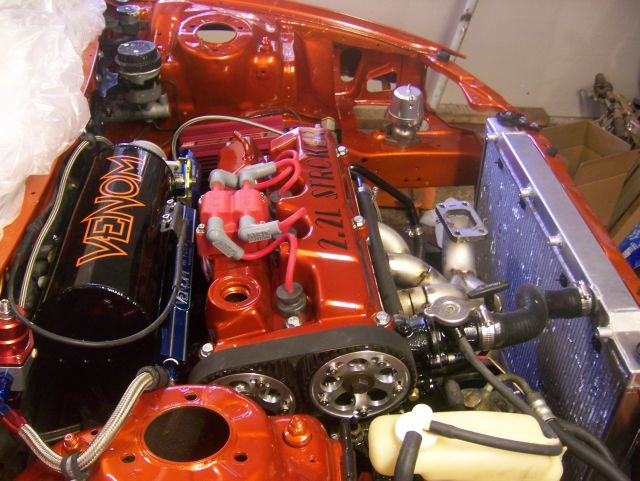

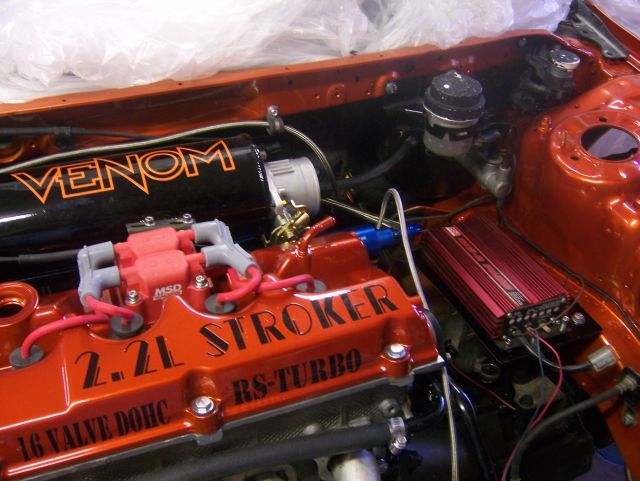

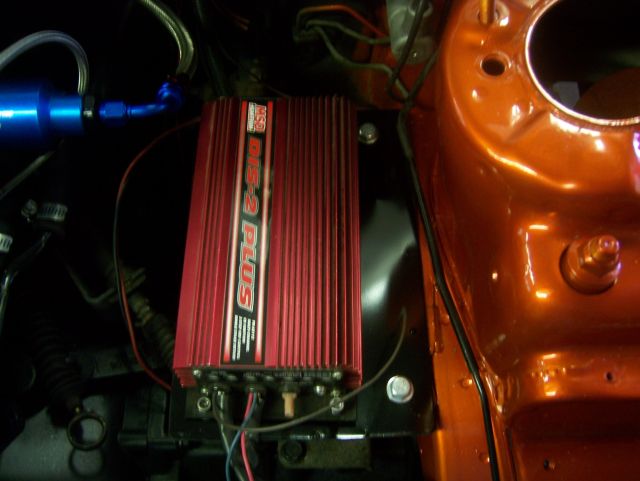

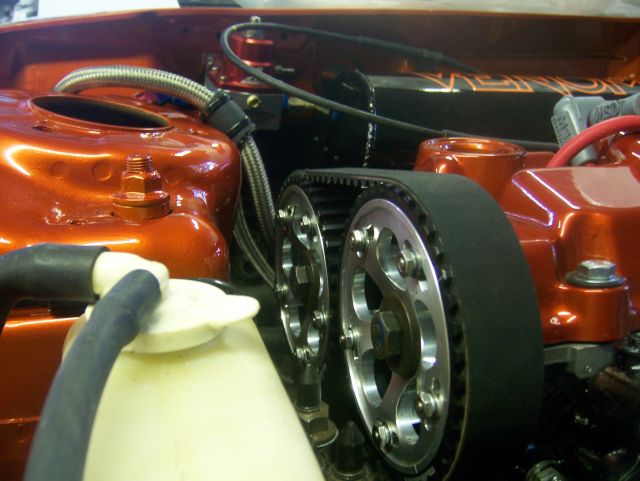

Half way done w/ new pics, eclipse982nrRST, Nov-04-08 02:29 PM, #26

RE: Half way done w/ new pics, Murfsmaster, Nov-04-08 03:24 PM, #27

RE: Half way done w/ new pics, eclipse RS-T, Nov-04-08 08:24 PM, #28

RE: Half way done w/ new pics, Moderator

Moderator

bullettdsm, Nov-04-08 11:20 PM, #29

RE: Half way done w/ new pics, eclipse982nrRST, Nov-05-08 12:46 AM, #30

RE: Half way done w/ new pics, turbo8u, Nov-05-08 01:46 AM, #31

RE: Half way done w/ new pics, eclipse982nrRST, Nov-05-08 02:14 AM, #32

RE: Half way done w/ new pics, Flipboi89, Nov-05-08 03:53 AM, #33

bullettdsm	Oct-09-08 09:45 AM
Donating 2GNT member 2676 posts,

#110206, "RE: The build."
In response to Reply # 0

IMO, get rid of the total seal rings.

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

djtrickee	Oct-09-08 10:07 AM
Donating 2GNT member 5924 posts,

#110208, "RE: The build."
In response to Reply # 1

What the shit. All this time and money and rubbish talk and you wimped out and only are building a 2.2. lol. Ghey.

.........................................................................................................................

Built. That's All...
.........................................................................................................................
www.monkeybuttpirate.com
.........................................................................................................................
2 Fingers of Scotch with a milk back... Stat!

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

SilvrEclips	Oct-09-08 10:20 AM
Member since Nov 27th 2007 534 posts,

#110209, "RE: The build."
In response to Reply # 2

Looks good man, what happens if you forget to put the oring in? I dont remember if I put mine in or not.

98 Eclipse GS Turbo
Built motor - MS2 - Holset hy35 - Zoom Stg 4 Clutch - 57.5mm TB - ARP Headstuds - Turbonetics wastegate - 3" Turbo back - FMIC - Greddy RZ BOV - Walbro 255 - 650cc Injectors - Fidanza Flywheel - Cobra calipers w/ 13" Rotors - Oil Cooler - DevilsOwn meth injection

1981 Chevy Scottsdale
1987 Nissan 300zx - Chump Car
2001 BMW 325i

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

420agreenvilleSC	Oct-09-08 10:30 AM
Donating 2GNT member 1527 posts,

#110210, "RE: The build."
In response to Reply # 3

very impressive mike. i really like it. yea i was gonna put my bedplate on and almost forgot the oring. lol. caught it in time. curious why you chose TS rings and not je's? your choice i know. anyway, keep the progress coming. awesome so far. how much did you spend for the crank??

___________________________________________

http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Oct-09-08 11:21 AM
Member since Mar 16th 2004 6314 posts,

#110211, "RE: The build."
In response to Reply # 4
Oct-09-08 11:23 AM by eclipse982nrRST

I do not have a problem with using TS.
I ran them on the 2.0 for 2 years with no problems. Swapped to JE's when I had the head off once and noticed no difference at all. Only problem I see with people having issues with TS's is because they arent installed correctly.

EDIT: Chris, what are you talking about me whimping out? Maybe because you guys thought i was building a 2.4 all along and I wasnt?

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

teklein	Oct-09-08 11:55 AM
Member since Nov 04th 2007 1699 posts,

#110212, "RE: The build."
In response to Reply # 5

Whats the shiny thing bolted to it?

Great job btw emoji

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Oct-09-08 12:10 PM
Member since Mar 16th 2004 6314 posts,

#110213, "RE: The build."
In response to Reply # 6

Originally posted by teklein
Whats the shiny thing bolted to it? Great job btw emoji

Oh yeah, forgot to mention it. That is an old school Chrysler voltage regulator. I need it for the alternator since I will no longer be using the stock ECU.

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

foggy45	Oct-09-08 12:44 PM
Member since Dec 28th 2003 1032 posts,

#110214, "RE: The build."
In response to Reply # 7

Originally posted by eclipse982nrRST
So, besides waiting another week for another set of bearings to use, why not just notch the bedplate yourself? I am supposed to be a professional right? lol. So, yes, I notched it myself.

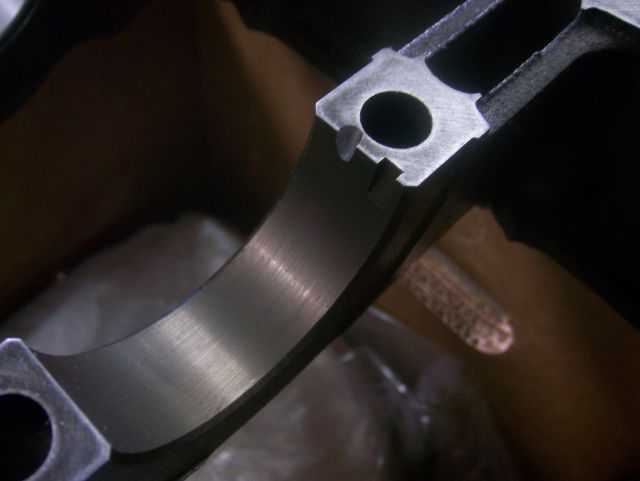

don't worry man, lots of people with 96+ bedplates notch them themselves so they have the ability to run a 360* grove set of main bearings.

______________________________________
______________________________________
"Don't fear the weapon, fear the soul of the warrior using it."
"My CEL only goes off when i remove my battery."

Best sum up of working on a 2GNT
DR1665- "#5. Spike that motherfucker on the garage floor and grab a beer. You deserve it."

Ahhhh Priceless . . .
eclipse982nrRST "its actually lightish red"
RoninEclipse2G "yeah, they already have a color for that... it's called PINK"

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

barza21	Oct-09-08 02:17 PM
Member since Oct 09th 2006 313 posts,

#110215, "RE: The build."
In response to Reply # 8

good memories are coming back! Hope you actually achieve your 400whp dude, you dont want a little 2.0L beating you, do you ? emoji

good luck with the build, keep us updated.

I wish I had blown it, believe me, I do...

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

1slw97	Oct-09-08 04:18 PM
Member since Aug 13th 2008 129 posts,

#110220, "RE: The build."
In response to Reply # 9

Looking good!!

97 Eclipse GS, 2.2 stroker,Gt35R,MSNS,E85 @20psi. 450hp 370tq..With issues

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

96TurboGS	Oct-09-08 07:32 PM
Member since Dec 01st 2007 125 posts,

#110221, "RE: The build."
In response to Reply # 10

On your way to 400 fucking hp. Just by curiosity what did the last set up make (hp wise)?

-Rafiel

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

Flipboi89	Oct-10-08 10:30 AM
Member since Oct 07th 2007 392 posts,

#110224, "RE: The build."
In response to Reply # 11

awww the memories lol. hope this build is gonna last a longer time keep us updated.

Car Status: P0140 o2 circuit number bank 1 sensor 2 Cel. Ill fix it tomorow lol.

Estimated mileage on engine: 15,xxx

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Oct-12-08 07:14 AM
Member since Mar 16th 2004 6314 posts,

#110238, "RE: The build."
In response to Reply # 12

Well, Saturday was a good day. No pics because I forgot my camera.

But, I got the following done.

Oil pump and pickup installed.
Water pump and outlet pipe installed.
Drilled and tapped oil pan for -10AN return and put pan on.
Got the head on and torqued the ARP head studs to 92ft lbs.
New lifters and rocker arms in, and got the cams in, but havent torqued the caps yet.

Tomorrow I should have the rest of the motor built. I should be able to get the cams torqued and gears put on, get the timing done and throw the intake and TB on it.

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

adammethner2005	Oct-13-08 12:56 PM
Member since Jul 13th 2008 1 posts,

#110254, "RE: The build."
In response to Reply # 13

Glad to see everything is coming together nicely. I'm finally starting to get that motor put together. Nice job remembering the o-ring this time emoji

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

talonesiracing	Oct-13-08 06:01 PM
Member since Jul 12th 2007 97 posts,

#110257, "RE: The build."
In response to Reply # 14

you did grind the bedplate for clearance issues right??

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Oct-16-08 04:39 AM
Member since Mar 16th 2004 6314 posts,

#110283, "RE: The build."
In response to Reply # 15

Originally posted by talonesiracing
you did grind the bedplate for clearance issues right??

You talking about where the rod cap bolt came to about .005" close to the bedplate I am guessing?

I actually didnt grind the bedplate, I just went ahead and ground down the one rod cap bolt on each rod, slotted it nicely and worked out perfect.

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

bullettdsm	Oct-16-08 09:56 AM
Donating 2GNT member 2676 posts,

#110286, "RE: The build."
In response to Reply # 16

Originally posted by eclipse982nrRST

Originally posted by talonesiracing you did grind the bedplate for clearance issues right??

You talking about where the rod cap bolt came to about .005" close to the bedplate I am guessing? I actually didnt grind the bedplate, I just went ahead and ground down the one rod cap bolt on each rod, slotted it nicely and worked out perfect.

FWIW next time grind the non moving part. No balance situation.

MB

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

stracer107	Oct-16-08 03:21 PM
Member since Dec 25th 2007 49 posts,

#110290, "RE: The build."
In response to Reply # 17

how are you doing your ecu? you said your not using the stock one.

97 RS blown engine

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

97AllMtr	Oct-13-08 08:16 PM
Member since Jul 20th 2007 175 posts,

#110260, "RE: The build."
In response to Reply # 14

Originally posted by adammethner2005
Glad to see everything is coming together nicely. I'm finally starting to get that motor put together. Nice job remembering the o-ring this time emoji

What O-ring? emoji

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

thormx353	Oct-16-08 03:22 AM
Member since Apr 17th 2008 62 posts,

#110282, "RE: The build."
In response to Reply # 19

nice job man, im doing a build myself. I'm a little anxious to get it done haha

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

teklein	Oct-16-08 06:41 AM
Member since Nov 04th 2007 1699 posts,

#110285, "RE: The build."
In response to Reply # 20

Anymore pics?

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Oct-17-08 09:43 AM
Member since Mar 16th 2004 6314 posts,

#110300, "Motor is in !!!"
In response to Reply # 21

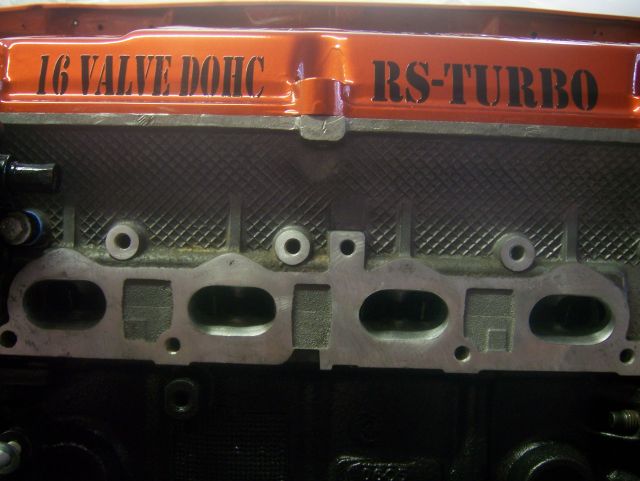

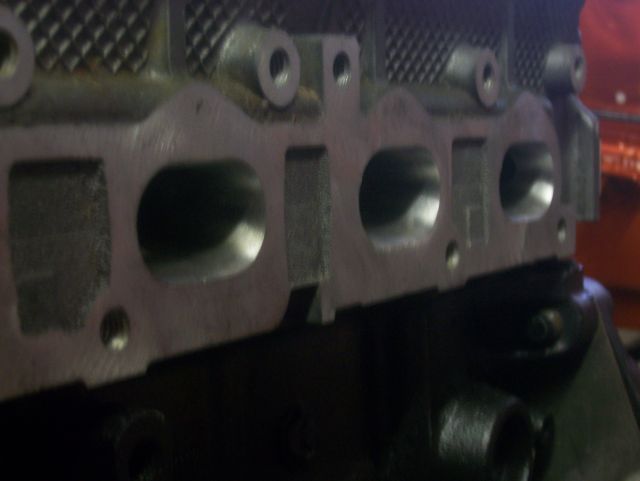

Well, about 30 minutes, I bolted the motor back into the car. Here are a few pics I took. Unfortunately I didnt have my camera at the shop when I finished building the engine itself.

Anyway, here she is.

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

SilvrEclips	Oct-17-08 10:01 AM
Member since Nov 27th 2007 534 posts,

#110301, "RE: Motor is in !!!"
In response to Reply # 22

Looks sweet man.. when is the rest of the car going to be finished?

98 Eclipse GS Turbo
Built motor - MS2 - Holset hy35 - Zoom Stg 4 Clutch - 57.5mm TB - ARP Headstuds - Turbonetics wastegate - 3" Turbo back - FMIC - Greddy RZ BOV - Walbro 255 - 650cc Injectors - Fidanza Flywheel - Cobra calipers w/ 13" Rotors - Oil Cooler - DevilsOwn meth injection

1981 Chevy Scottsdale
1987 Nissan 300zx - Chump Car
2001 BMW 325i

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Oct-17-08 10:14 AM
Member since Mar 16th 2004 6314 posts,

#110302, "RE: Motor is in !!!"
In response to Reply # 23

Originally posted by SilvrEclips
Looks sweet man.. when is the rest of the car going to be finished?

Hopefully end of November.

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

420agreenvilleSC	Oct-17-08 10:38 AM
Donating 2GNT member 1527 posts,

#110303, "RE: Motor is in !!!"
In response to Reply # 24

sick man. just sick. keep it up

___________________________________________

http://www.2gnt.com/quote_db.php?id=278

Outside of Corona: "That sucks, peace out..." (jamie walks away)... "Sweeet, what we doin?" -Zac
Tim's garage (prior to motor install): "Im gonna smoke real quick, that way if you fuck up I am already nicotined up" -Tim

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Nov-04-08 02:29 PM
Member since Mar 16th 2004 6314 posts,

#110496, "Half way done w/ new pics"
In response to Reply # 25

I am about half way done with this project...here are some new pics from previous weeks progress.

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

Murfsmaster	Nov-04-08 03:24 PM
Member since Mar 22nd 2005 175 posts,

#110497, "RE: Half way done w/ new pics"
In response to Reply # 26

That looks amazing mike. I wish my engine bay was half as nice as that. Keep it up

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse RS-T	Nov-04-08 08:24 PM
Member since Apr 10th 2007 54 posts,

#110499, "RE: Half way done w/ new pics"
In response to Reply # 27
Nov-04-08 08:25 PM by eclipse RS-T

Looks badass! Great work

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

bullettdsm	Nov-04-08 11:20 PM
Donating 2GNT member 2676 posts,

#110500, "RE: Half way done w/ new pics"
In response to Reply # 28

Lots of bling-ass clean stuff (stuff I know nothing about, lol). Looks great.

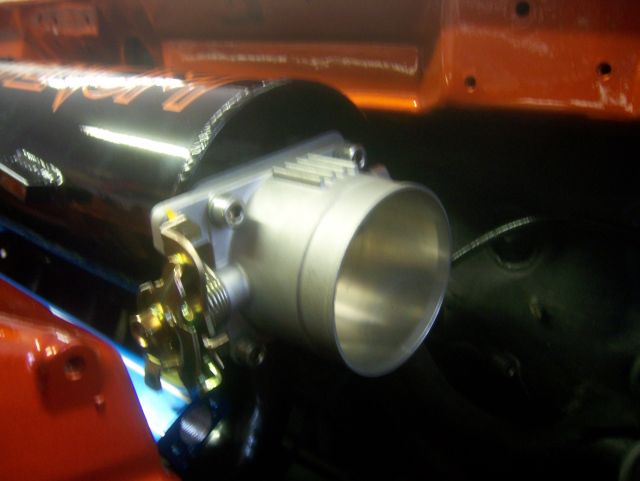

Never caught what TB you are using. Mustang?

When you get done with this, you may want to switch out the intake for an AMM. I switched out the OBX (yeah, I know not the same thing. But same size) on the turbo and the difference was palpable. better response and quicker spool (haven't got it on the dyno yet).

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Nov-05-08 12:46 AM
Member since Mar 16th 2004 6314 posts,

#110502, "RE: Half way done w/ new pics"
In response to Reply # 29

Originally posted by bullettdsm
Lots of bling-ass clean stuff (stuff I know nothing about, lol). Looks great. Never caught what TB you are using. Mustang? When you get done with this, you may want to switch out the intake for an AMM. I switched out the OBX (yeah, I know not the same thing. But same size) on the turbo and the difference was palpable. better response and quicker spool (haven't got it on the dyno yet).

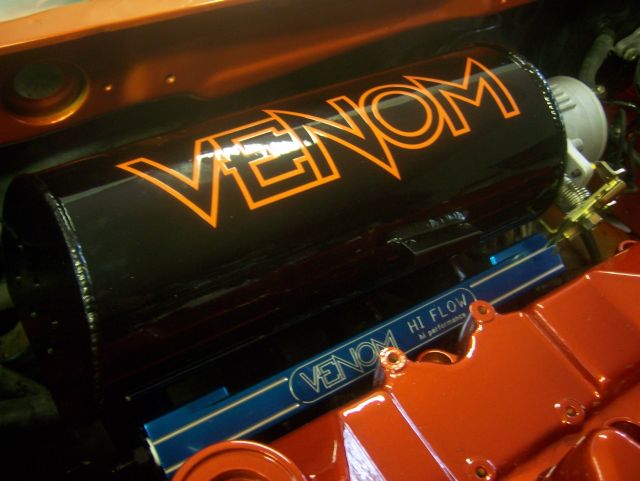

I was already talking with AMM from the beginning of this project, thats why I initially sold my old Venom manifold to Paul.

However, his ideas and design are badass, but I unfortunately do not like how the manifold bolts up. I dont like how its down so low and you can see the entire firewall, lol.

Not very much bling bling stuff, just a nice fresh painted engine bay and the i/M and v/c are glossy!

Thanks for the comments though guys.

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

turbo8u	Nov-05-08 01:46 AM
Member since Jun 15th 2003 10552 posts,

#110503, "RE: Half way done w/ new pics"
In response to Reply # 30

.. emoji

_ _ _ _ _ _ _ _ _

96 Black ESi
91 Red TSI AWD (RIP)
02 WRX

"turnin wrenches for nine hours in the pouring rain, just to get the beast up and running again"

Aerospace Certified TIG welder for Precision Castparts in Portland, OR.

JoshSpair.com

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

eclipse982nrRST	Nov-05-08 02:14 AM
Member since Mar 16th 2004 6314 posts,

#110506, "RE: Half way done w/ new pics"
In response to Reply # 31

Originally posted by turbo8u

..

Yeah, now I am living on peanut butter/jelly and hot dogs for lunch every day!!!!

-MIKE-

Stroked 2.2L

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

Flipboi89	Nov-05-08 03:53 AM
Member since Oct 07th 2007 392 posts,

#110507, "RE: Half way done w/ new pics"
In response to Reply # 32

Hah i was just gonna ask where u get all ur money mike lol.

Car Status: P0140 o2 circuit number bank 1 sensor 2 Cel. Ill fix it tomorow lol.

Estimated mileage on engine: 15,xxx

Report This Post to Admin

Printer-friendly copy | Reply | Reply with quote | Top

Top

Performance/Engine

topic #110205

Previous topic | Next topic

Powered by DCForum+ Version 2.2
Copyright 1997-2005 DCScripts.com, Copyright 2005-2026 2gnt.com

Generated in 0.081 seconds, executing 80 queries.
