After months of waiting for my parts from Howell, I finally got them all. I'm assembling the motor as we speak. Here's what's going in to it:

Block
- Callies Stroker Crank
- JE.040 8.8:1 Pistons (JE rings)
- Eagle Rods
- New main and rod bearings
- ARP Main Studs
- Melling High Volume Oil Pump

Head
- Crane number 14 cams
- Crane springs with titanium retainers
- Stainless steel valves std. size
- AEM cam gears
- ARP Head Studs
- PT Cruiser lifters and rockers

The head and block have both been deck and I had a three angle valve job with a minor port and polish.

Now all I need to do is get a turbo kit.

nice set up. i'd go ahead and put the engine in while you get funds or whatever for the turbo system. that way you can break it in and have it ready for boost

=Dan=



98rs eclipse- Mods: BC2, C/F hood, custom turbo system consisting of a PTE SC50, turbosmart ultra gate (10psi), star FMIC and pipes, SFMU, HKS SSQV, 3" V-BAND downpipe from ATP, Zeitronix Wideband LCD displaying boost, egt and 02. *** SOLD and will be missed***

2006 gsxr 750- jardine gp1 exhaust, -1,+2 stealth sprockets, DID 525 chain, JD products pro TRE. 0-60 in a sneeze. ran a 10.8 avg 1/4 mile my first time to the track on street tires, stock swingarm and unstrapped.

exactly what I plan to do, although i should have the money within the next few months. Graduation and that check from the government should help out with that.

You will like it. I had one in mine, built BY Howell. I had a long wait also, but it was a great engine.

Jonathan
95 Eclipse GS
8 injector
Hahn Stage 3.5
Howell 2.2L Stroker

T O T A L L E D, T H A N K S T O S O M E A S S H A T!!!!!!!!!!!!

I'll have pics posted of soon of what I have done and what is going to happen. Almost all the work done to this motor was done by me so hopefully it will make me proud.

~Russ





Well I have no Check Engine Lights....But I just don't have a engine...LOL

Just a quick question. How long exactly did it take to get all your parts because I just ordered the howell 2.2 stroker short block today from them and am hoping I get it by summer.

_____________________________________________
95TalonOwner on DSMTuners.com
Wes Tank on WiDSM.org

If it takes longer then what it says on the website, call them and tell them you are going to get the better business buruea (spell check) involved and you can even get free shit out of it. I got an underdrive pulley haha.

1998 Eclipse RS-T - Totaled 4/23/09 -
1998 Eclipse GST - Stroked 2.3l, HX40 fed: Build in progress
2010 Subaru Outback Limited

I hate hipsters.

Alright could someone let me know how to post pics. I'm really trying to show you guys what I have.

______________________________
If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.

'95 Eclipse TurboGS (garage deco)
'95 TSi AWD (restoring a survivor)
'97 Talon ESi-T (poor impulse control)
'99 Eclipse RS-T (daily beater)
'13 Evo X (mostly stock)
'17 Sienna (Middle Aged Dad Mobile)



Factory Service Manuals: http://nawdu.de/files/

thanks... I'll have them posted tonight.

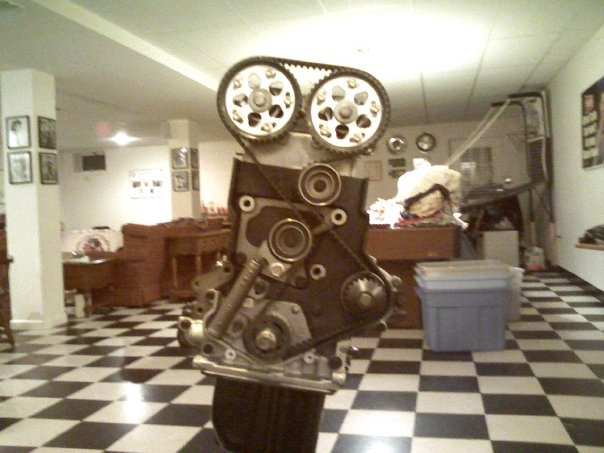

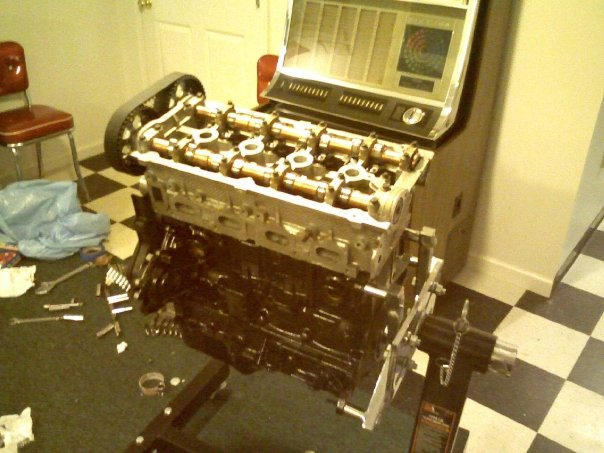

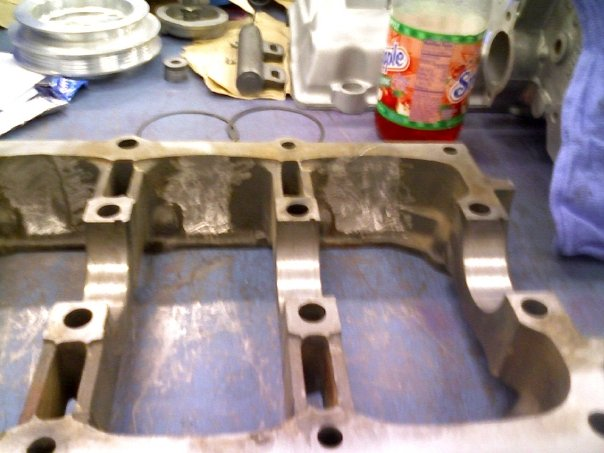

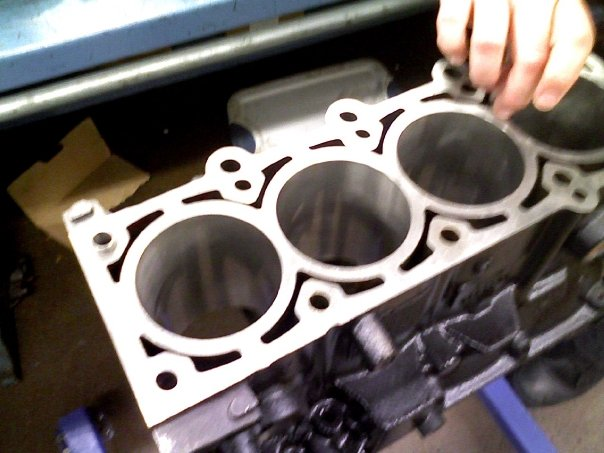

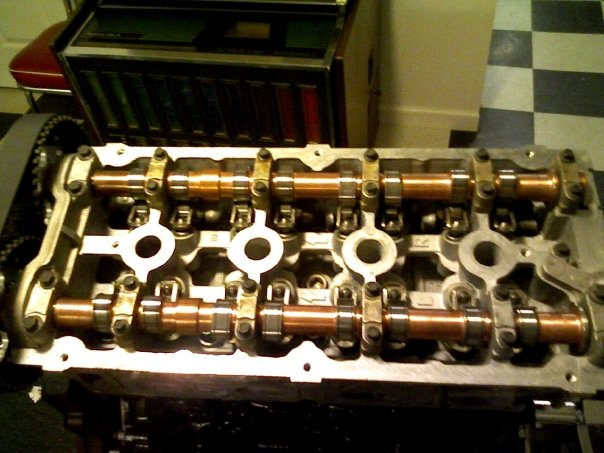

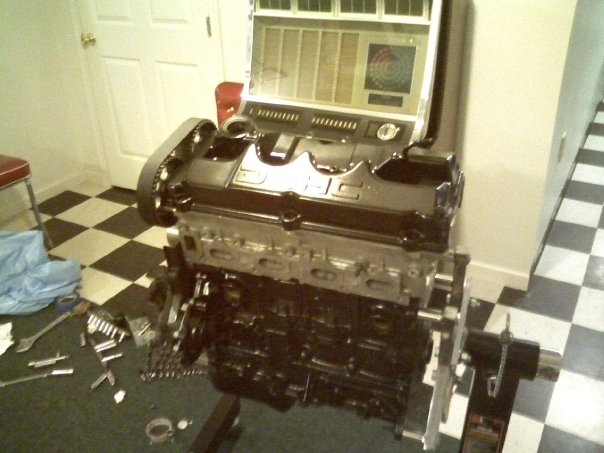

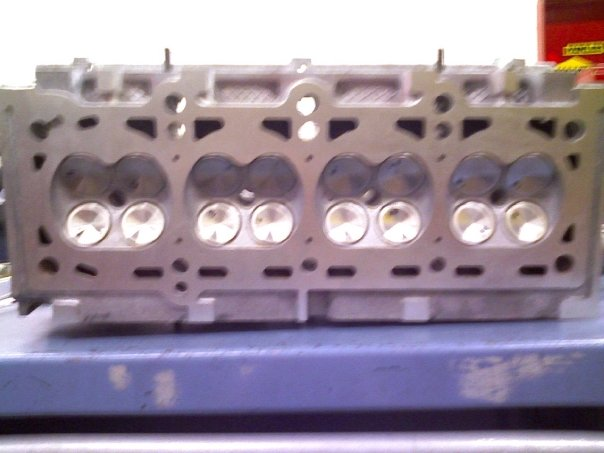

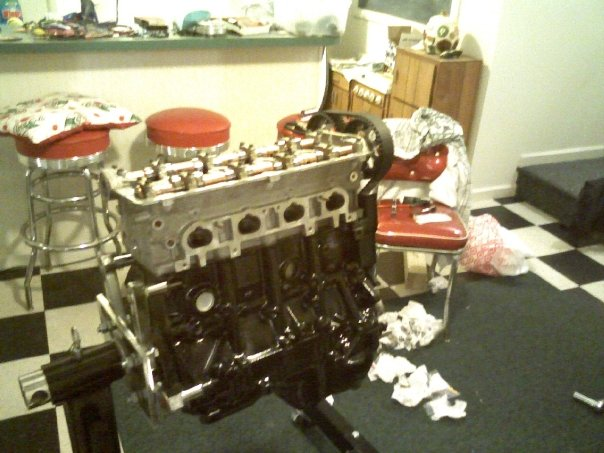

http://www.2gnt.com/graphics/n1458270053_30012738_3686.bmp
http://www.2gnt.com/graphics/n1458270053_30012737_3388.bmp
http://www.2gnt.com/graphics/n1458270053_30012735_2781.bmp
http://www.2gnt.com/graphics/n1458270053_30012734_2489.bmp
http://www.2gnt.com/graphics/n1458270053_30012733_2153.bmp
http://www.2gnt.com/graphics/n1458270053_30012731_1058.bmp
http://www.2gnt.com/graphics/n1458270053_30012730_787.bmp

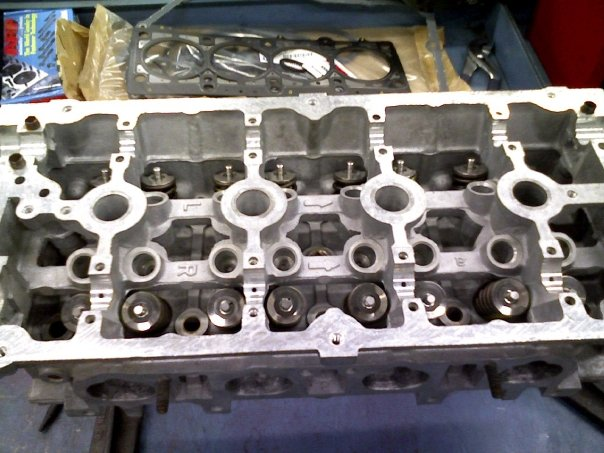

http://www.2gnt.com/graphics/n1458270053_30012729_522.bmp
http://www.2gnt.com/graphics/n1458270053_30012728_207.bmp

Looking good. Looks like you've got a hell of a cozy shop. I had to put my motor together in a broken ass shed that was freezing. Motor looks nice though.

It was actually my machine shop at school. Pretty nice place. I got to all the work myself so hopefully its a pretty satisfing project.
