#102161, "RE: Stuck Crank Sprocket" In response to Reply # 0
ehh, dont know if i would presonally use a torch around the crankshaft myself. are you using an impact gun on the puller? spray some wd40 around the inside of it and then pull it off with the puller/impact...?
#102164, "RE: Stuck Crank Sprocket" In response to Reply # 1
No.. My compressor is busted, but under warranty so I'll bust that out. How are you guys stopping the puller from spining the crank? I'm stopping it with 2 bolts but they're bending.. works, but not that well.
#102165, "RE: Stuck Crank Sprocket" In response to Reply # 3 Dec-06-06 02:50 PM by turbo8u
nick, take off the oil pan if its still on...use the wooden end of a hammer to jam it into the crank and use it to stop the crank from turning.
heat up the pulley on the INSIDE, try not to make the flames go through the holes there and melt the front main seal on the oil pump. My guess is youre replacing all that shit anyway, so roast it.
use a steering wheel puller and 3 8mm hardened bolts (if i remember right theyre 8mm) with fat washers.
its still likely going to be a bitch, ive even used a cutoff wheel and cut into the pulley (this frees tension and also puts in helpful heat) but obviously, you dont re-use that part.
it'll come off, but a 3 jaw isnt going to work...it just breaks the sprocket from what ive seen. get situated with the steering wheel puller on the sprocket, add some tension and then put it heat with a propane torch. PB blaster will help you break any surface rust thats there.
and if all else fails, smack it with ur cock
_ _ _ _ _ _ _ _ _
96 Black ESi 91 Red TSI AWD (RIP) 02 WRX
"turnin wrenches for nine hours in the pouring rain, just to get the beast up and running again"
Aerospace Certified TIG welder for Precision Castparts in Portland, OR.
#102178, "RE: Stuck Crank Sprocket" In response to Reply # 8
That's exactly what I was looking for, thx Dave. I have two big bolts in the 4th slot of the puller attempting to hold the crank in place... SUCKS! oh wells..
#102179, "RE: Stuck Crank Sprocket" In response to Reply # 9 Dec-07-06 04:23 PM by turbo8u
Originally posted by Collente That's exactly what I was looking for, thx Dave. I have two big bolts in the 4th slot of the puller attempting to hold the crank in place... SUCKS! oh wells..
Nick....dude I already explained this if you read what i wrote...
Originally posted by turbo8u use a steering wheel puller and 3 bolts and fat washers. heat with a propane torch. PB blaster will help you break any surface rust thats there. and if all else fails, smack it with ur cock
nutshell
keep the crank still by wedging the wooden end of a hammer in the crank and crankcase
also, use a good puller, or your threads are going to die hard. with an impact you'll notice the 6mm bolts starting to bend too. You might have to wedge that too to keep it from turning with the screw. the impact will make it worse, and too much bending you'll shear the 6mm bolts. then you're in for some real fun.

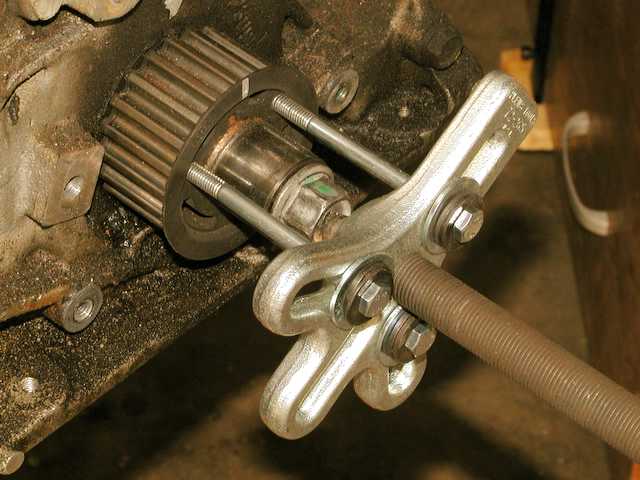

see all the surface rust on Daves picture right there at the joint? PB that shit...let it sit....add heat and once it pops, it should come off fairly easy
