Subject: "another transmission -wont go into gear problem." Previous topic | Next topic
TEAM OVER REVAug-05-08 08:57 PM
Member since Aug 15th 2006
44 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#7294, "another transmission -wont go into gear problem."




I was going down the highway when all of the sudden the transmission would go into gear. I was just about to shift in to fourth and the shifter locked up.
I turned the car off, while the car is off it shifts fine through all gears, once turned on it locks up(cant shift). When the car is off and put in gear, then started it bogs and I can try to push it to gear but cant, if I try pushing I could feel the car kinda lean forward, same in reverse.
All the master,slave, and cables checked out good. The pressure feels fine, almost like the clutch is engaged all the time.
It is a Spec 3+. Thanks all the help will be appreciated*



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top

Replies to this topic
RE: another transmission -wont go into gear problem., Global Ruler Of All ThingsDarkOne, Aug-06-08 02:58 AM, #1
RE: another transmission -wont go into gear problem., TEAM OVER REV, Aug-06-08 06:22 AM, #2
      RE: another transmission -wont go into gear problem., TEAM OVER REV, Aug-06-08 06:32 AM, #3
           RE: another transmission -wont go into gear problem., TEAM OVER REV, Aug-20-08 04:16 PM, #4
                RE: another transmission -wont go into gear problem., justins71, Aug-21-08 01:35 PM, #5
                     RE: another transmission -wont go into gear problem., Global Ruler Of All ThingsDarkOne, Aug-27-08 05:30 AM, #6
                          RE: another transmission -wont go into gear problem., TEAM OVER REV, Aug-27-08 07:58 AM, #7

Global Ruler Of All ThingsDarkOneAug-06-08 02:58 AM
Donating 2GNT member
14955 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#7299, "RE: another transmission -wont go into gear problem."
In response to Reply # 0






It's probably clutch failure. Could also be a seized gear inside the trans.

______________________________
If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.

'95 Eclipse TurboGS (garage deco)
'95 TSi AWD (restoring a survivor)
'97 Talon ESi-T (poor impulse control)
'99 Eclipse RS-T (daily beater)
'13 Evo X (mostly stock)
'17 Sienna (Middle Aged Dad Mobile)



Factory Service Manuals: http://nawdu.de/files/



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


TEAM OVER REVAug-06-08 06:22 AM
Member since Aug 15th 2006
44 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#7300, "RE: another transmission -wont go into gear problem."
In response to Reply # 1




I removed the tranny. The clutch looks fine but on the pressure plate, there are 2 flat edged things on the pressure plate top and bottom that seem to be broken. Thanks



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


TEAM OVER REVAug-06-08 06:32 AM
Member since Aug 15th 2006
44 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#7301, "RE: another transmission -wont go into gear problem."
In response to Reply # 2




Oh yea I forgot... The transmission shifts fine, the longer rod* (1-3rd?) moves, the shorter one (5-r) moves slightly while the other longer one is in neutral. Sorry for my lack of knowledge



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


TEAM OVER REVAug-20-08 04:16 PM
Member since Aug 15th 2006
44 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#7334, "RE: another transmission -wont go into gear problem."
In response to Reply # 3

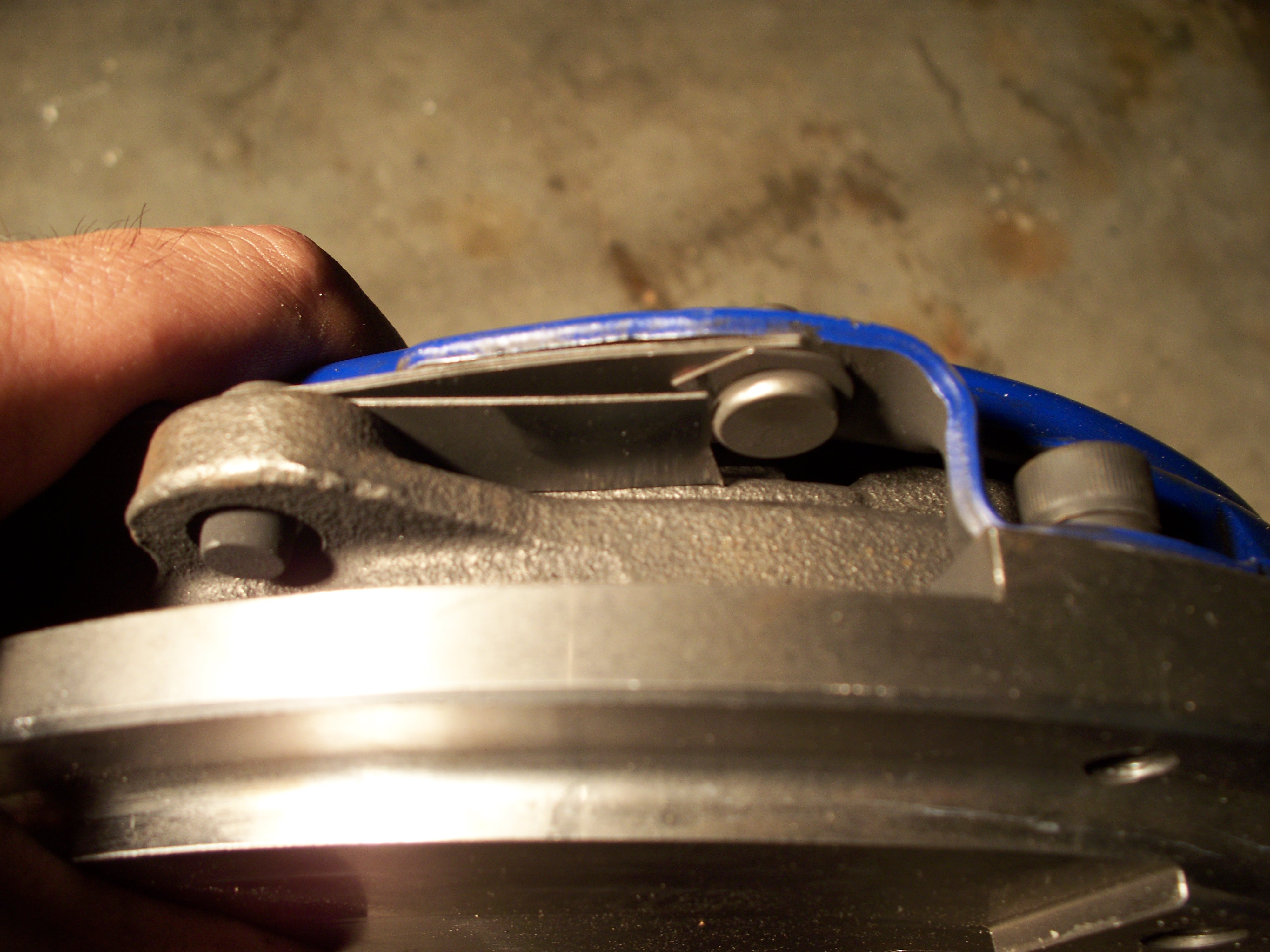

Heres the picture of the clutch. I couldnt find how to resize it. I believe it is the torsion(tension) bars that broke and bent*
thanks*



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


justins71Aug-21-08 01:35 PM
Member since Oct 25th 2007
466 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#7335, "RE: another transmission -wont go into gear problem."
In response to Reply # 4




Dude, that pic is f'in huge... use paint or any program to shrink it... And yeah, pressure plate is busted.

/>

'95 GS w/ t3/t4b
FMIC, diy piping & RFL BOV
MS2-Extra Fuel&Spark
50 lb/hr Holley injectors w/ 1:1 RRFPR
JE 8.8:1 dish w/ Hastings Rings
Eagle Rods w/ ARP bolts
ARP Head studs
Mild port/polish head
3" custom DP/cat section, 3" PIT catback
dual MBC - 12 psi / 20psi



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


Global Ruler Of All ThingsDarkOneAug-27-08 05:30 AM
Donating 2GNT member
14955 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#7340, "RE: another transmission -wont go into gear problem."
In response to Reply # 5






Originally posted by justins71
pressure plate is busted.


yeap.

______________________________
If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.

'95 Eclipse TurboGS (garage deco)
'95 TSi AWD (restoring a survivor)
'97 Talon ESi-T (poor impulse control)
'99 Eclipse RS-T (daily beater)
'13 Evo X (mostly stock)
'17 Sienna (Middle Aged Dad Mobile)



Factory Service Manuals: http://nawdu.de/files/



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


TEAM OVER REVAug-27-08 07:58 AM
Member since Aug 15th 2006
44 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#7342, "RE: another transmission -wont go into gear problem."
In response to Reply # 6




yea pressure plate busted is what I wanted to hear too. I dont want to replace the transmission. So im in the middle of deciding on a spec stg4 with aluminum flywheel or a cluthmasters stg4(fx400). I have read how people like and daily their clutchmaster(Darkone), and the same whe the spec. Im going to order one tonight and probably going towards the aluminum flywheel.
THANKS



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top
