I have started to install my new motor. I had picked up a Hahn FMIC for the DSM, but it didnt come with the mounting hardware.

I need to know what I need to mount this beast to the nose of my car.

I know that the bolts are M6,1.0 What I need to know is what the lent are and what the length of the spacers are.

thanks guys

tom

98 RS 5spd.

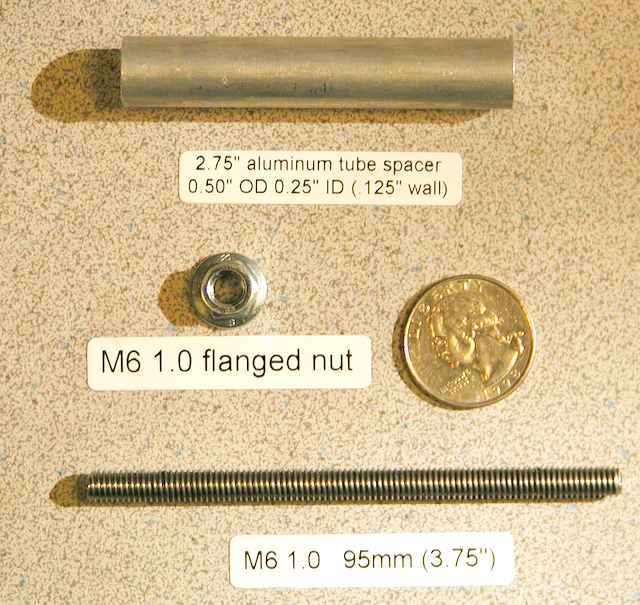

Here is the mounting hardware you'll need.

4 ea. M6 x 1.0 x 95mm length (3.75") all-thread is easiest but a bolt will work.

4 ea. M6 x 1.0 flanged nut

4 ea. 0.50 OD x 0.25 ID x 2.75" length aluminum tube




Info taken from this post.

DirtMegirt
Wiki Contributor

thanks!

Tom

98 RS 5spd.
