Subject: "Headlight Fuzz" Previous topic | Next topic
96TurboGSSep-08-08 03:46 PM
Member since Dec 01st 2007
125 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101769, "Headlight Fuzz"






Any of you guys had this happen to you? I thought I might ask because I know just about everyone has had or has something similar to these lights. What’s the best way to get these scratches removed? It’s like someone has ruffed them up with a sander. I don’t know whets causing it; I tried using mothers back to black hoping it would work but did nothing but flake more. Someone said something about sanding it with a fine disk, but idk sounds risky. Suggestions anyone?


-Rafiel



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top

Replies to this topic
RE: Headlight Fuzz, murray1, Sep-08-08 04:32 PM, #1
RE: Headlight Fuzz, ez, Sep-08-08 05:19 PM, #2
      RE: Headlight Fuzz, freelancefool, Sep-09-08 01:19 AM, #3
           RE: Headlight Fuzz, Moderatorteklein, Sep-09-08 01:48 AM, #4
                RE: Headlight Fuzz, 96TurboGS, Sep-09-08 06:16 PM, #5
                     RE: Headlight Fuzz, Moderatorteklein, Sep-10-08 02:38 AM, #6
                          RE: Headlight Fuzz, 96TurboGS, Sep-10-08 08:31 AM, #7
                               RE: Headlight Fuzz, Moderatorteklein, Sep-12-08 02:20 AM, #8
                                    RE: Headlight Fuzz, edxmon, Sep-12-08 05:04 AM, #9
                                         RE: Headlight Fuzz, azdave, Sep-15-08 09:53 AM, #10
                                              RE: Headlight Fuzz, Moderatorxcasbonx, Sep-15-08 10:10 AM, #11
                                              RE: Headlight Fuzz, 96TurboGS, Sep-15-08 05:17 PM, #12
                                                   RE: Headlight Fuzz, AdministratorStar Turbo Talon, Sep-15-08 08:28 PM, #13
                                                        RE: Headlight Fuzz, Slo2g, Sep-16-08 02:31 AM, #14
                                                             RE: Headlight Fuzz, azdave, Sep-16-08 11:10 AM, #15
                                                                  RE: Headlight Fuzz, 96TurboGS, Sep-16-08 05:41 PM, #16
                                                                  RE: Headlight Fuzz, AdministratorCODE4, Sep-16-08 06:18 PM, #17
                                                                       RE: Headlight Fuzz, azdave, Sep-17-08 03:00 AM, #18
                                                                            RE: Headlight Fuzz, Moderatorteklein, Sep-17-08 07:42 AM, #19
                                                                                 RE: Headlight Fuzz, azdave, Sep-17-08 10:19 AM, #20
                                                                                      RE: Headlight Fuzz, Moderatorteklein, Sep-17-08 10:55 AM, #21
                                                                                           RE: Headlight Fuzz, freelancefool, Sep-17-08 01:43 PM, #22

murray1Sep-08-08 04:32 PM
Member since May 18th 2007
58 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101770, "RE: Headlight Fuzz"
In response to Reply # 0




Hey, you should read through the wiki on main page. There is some good information on our cars. One of them happens to be a link on this subject.

http://talontimes.blogspot.com/2006/11/headlights.html



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


ezSep-08-08 05:19 PM
Old School 2GNTer
3461 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101771, "RE: Headlight Fuzz"
In response to Reply # 1




http://forums.2gnt.com/dcboard.php?az=show_topic&forum=7&topic_id=92541&mesg_id=92541&listing_type=search

2gnt: '99 RS-T, killed by a toyota, pending rebuild...
Daily: Volt
Daily #2: '99 EVG ebike- STOLEN by PEDRO



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


freelancefoolSep-09-08 01:19 AM
Donating 2GNT member
765 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101776, "RE: Headlight Fuzz"
In response to Reply # 2






The only problem that I have had with sanding them down is finding something to seal the plastic. I'm thinking Testor's clear coat to keep my lights from fogging up again.

My Blog



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


ModeratortekleinSep-09-08 01:48 AM
Member since Nov 04th 2007
1699 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101777, "RE: Headlight Fuzz"
In response to Reply # 3




I follow freelancefools write up in the wiki, although I used several more grits of sandpaper.

Then buffed the hell out of them with Mequiars PlastX.

Everytime I wash the car I throw a coat of PlastX on, so far no issues.



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


96TurboGSSep-09-08 06:16 PM
Member since Dec 01st 2007
125 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101781, "RE: Headlight Fuzz"
In response to Reply # 4






I am well aware of the wiki, its not like ive been using it for the past 2 years or anything. Reason for this post is because I no nothing about detailing a car. its not like the film that u can just rub mothers on to get rid of; been there done that on the old headlights. The scratches are deeper than the film that builds up on your stock headlight. I took some 1500 grit sand paper and scrubbed it good and applied the 3m rubbing compound along with mothers and I ran into the same problem that freelancefool mentioned. I didn’t get plastic X because autozoo said they didn’t have any in stock. So I went along with 3m; its good stuff. I thought about the buffer option, but I’m bout to order the MSNS from Paul here in the next couple days. The lights are a little cloudy to see out of now. Been through so many damn articles but don’t feel like wasting money. So my question to you guys with plastic lights is how did yall mention to get them clear, am I missing a step?

-Rafiel



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


ModeratortekleinSep-10-08 02:38 AM
Member since Nov 04th 2007
1699 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101782, "RE: Headlight Fuzz"
In response to Reply # 5




Here, let me like you the wiki article:

http://www.2gnt.com/index.php?d=Fixing%20a%20Hazy%20headlight

Follow that exactly.

I however went 320, 400, 600, 800, 1000, 1500, then 2000 grit sandpaper.

Then buff the hell out of them.

Mine were a night and day difference.



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


96TurboGSSep-10-08 08:31 AM
Member since Dec 01st 2007
125 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101784, "RE: Headlight Fuzz"
In response to Reply # 6






I will give it a try. Looks promising. I misread the post. Thanks for the input guyz.

-Rafiel



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


ModeratortekleinSep-12-08 02:20 AM
Member since Nov 04th 2007
1699 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101790, "RE: Headlight Fuzz"
In response to Reply # 7
Sep-12-08 02:21 AM by teklein



Originally posted by 96TurboGS
I will give it a try. Looks promising. I misread the post. Thanks for the input guyz.


One little tip from what I did (if you headlights are yellowed):

When you are sanding with the 320, you will see YELLOW come off the headlight, keep rinsing and sanding until the wet sanding comes off clear/white. Then start with the other grits.

When I wash the car this weekend ill snap some pics and post them up here for you to see.



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


edxmonSep-12-08 05:04 AM
Member since Jul 27th 2005
1006 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101792, "RE: Headlight Fuzz"
In response to Reply # 8












Great stuff, $15 a bottle though. As you can gather I've been using it for some time, since before I finished my cars exterior.



Originally posted by turbo8u
his girl kept looking out and down my car like uh ok we're in this 100 whatever thousand dollar car and that little whatever it is just raped us.... turbo screamed past the window like a vortex of ownage :-P robbing his engine of all the air around, and thats how i like it

Originally posted by ez
I came across a huge sack of walnuts in my grandmas garage - I better make use of them.

I contributed to the wiki! My Page: edxmon



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


azdaveSep-15-08 09:53 AM
Member since Nov 25th 2003
694 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101801, "RE: Headlight Fuzz"
In response to Reply # 9




Since the hardcoat on the lenses is now gone the shiny surface will not last too long until it needs another polish.

If you want that look to last (and have protection from road debris chips) go get some 6-mil Ventureshield paint protection film and cover them. You can usually find it on ebay by the foot. (I've never seen it in pre-cut patterns like most vehicles). The turn signal bump is a little tricky but after doing a few I got better at it.

Your local tint shop can also help you here if you don't want to mess with the install. I am a big fan of the Ventureshield and don't care so much for the 3M version or the LaminX products but there are other choices.

http://www.venturetape.com/product.php?productid=1274&cat=12&page=1

Ventureshield has a lifetime warranty when installed by a dealer according to the website. I expect to get 5-6 years at least in the AZ sun. It is a non-yellowing urethane film. If it ages I'll peal it off and put on an new layer but it shows no signs of needing that yet.

Check youtube for many installation vids.





[URL="

"]Ventureshield install



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


ModeratorxcasbonxSep-15-08 10:10 AM
Donating 2GNT member
2874 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101802, "RE: Headlight Fuzz"
In response to Reply # 10






Excellent information as always, Dave. Thank you. emoji


I contributed to the Wiki.



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


96TurboGSSep-15-08 05:17 PM
Member since Dec 01st 2007
125 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101803, "RE: Headlight Fuzz"
In response to Reply # 10






Originally posted by teklein
One little tip from what I did (if you headlights are yellowed): When you are sanding with the 320, you will see YELLOW come off the headlight


My headlights were never yellow, they were pealing as you can see in the photo. Have no idea why, sun maybe? Had a rough texture to it.

Originally posted by azdave
Since the hardcoat on the lenses is now gone the shiny surface will not last too long until it needs another polish. If you want that look to last (and have protection from road debris chips) go get some 6-mil Ventureshield paint protection film and cover them. You can usually find it on ebay by the foot. (I've never seen it in pre-cut patterns like most vehicles). The turn signal bump is a little tricky but after doing a few I got better at it.


First time i herd this, but it makes since. This is some good info and should be added to the wiki

-Rafiel



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


AdministratorStar Turbo TalonSep-15-08 08:28 PM
Member since Oct 21st 2003
8331 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101804, "RE: Headlight Fuzz"
In response to Reply # 12






I wonder if someone painted them before you bought them? Maybe a clearcoat coming off?



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


Slo2gSep-16-08 02:31 AM
Member since Feb 10th 2006
1074 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101805, "RE: Headlight Fuzz"
In response to Reply # 13




One of mine did the same thing. I had a guy at my old work (Nissan) that did the headlight resurfacing to them, worked like a charm. I didn't have time to take them off and sand them like that and he did them cheap for me. Worked great, it just took a little while on that one headlight because he had to sand it down a good bit to get that "peeling" off of it.



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


azdaveSep-16-08 11:10 AM
Member since Nov 25th 2003
694 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101806, "RE: Headlight Fuzz"
In response to Reply # 14
Sep-16-08 11:12 AM by azdave



The coating is a required treatment on all plastic headlight lenses. It is used to make the relatively soft plastic underneath withstand years of road use. The coating is usually sprayed on and cured by IR and/or UV lamps. The coating imparts UV protection as well as minor abrasion and pebble impact.

Once the coating is gone you will begin to see the yellow tint form on the plastic since the UV protection is gone. Some lenses (Neons, 3G Eclipses) use a low quality platic underneath and when the hardcoat is gone they yellow severely within a few months.

Once the hardcoat layer begins to delaminate it progresses across the lens just like peeling paint in various patterns. The hard coat peels faster when going through wet and dry periods so if your car is not garaged it happens even faster.

If you have ever sanded out a set of lenses with some of this hardcoat remaining you will have noticed it really eats up the sandpaper until you get completely through that layer.

The cheap ebay projector lights have this same hardcoat on them but in a much thinner layer. It usually degrades badly after the first year or two. I use the Ventureshield film on these light before they ever see the road to prevent early failures.

You can spray on a clearcoat but you will not find anything nearly as hard as the OEM type coatings. The rock protection films are unique in that they are not affected by minor abrasion or pebbles even though they are a soft film. They are able to stay soft and clear due to the urethane constuction having excellent outdoor durability.



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


96TurboGSSep-16-08 05:41 PM
Member since Dec 01st 2007
125 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101807, "RE: Headlight Fuzz"
In response to Reply # 15






I dont believed in ebay, never will for cheap/used things. I bought my lights off some site. I might go on ebay to buy silicone couplers for my ic piping(from a company) but that's about it. This Ventureshield stuff sounds sweet and i will order some to save my other light, since its in perfect condition.

Thanks...

-Rafiel



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


AdministratorCODE4Sep-16-08 06:18 PM
Member since Nov 23rd 2003
2552 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101808, "RE: Headlight Fuzz"
In response to Reply # 15
Sep-16-08 11:51 PM by CODE4





Originally posted by azdave
The coating is a required treatment on all plastic headlight lenses. It is used to make the relatively soft plastic underneath withstand years of road use. The coating is usually sprayed on and cured by IR and/or UV lamps. The coating imparts UV protection as well as minor abrasion and pebble impact. Once the coating is gone you will begin to see the yellow tint form on the plastic since the UV protection is gone. Some lenses (Neons, 3G Eclipses) use a low quality platic underneath and when the hardcoat is gone they yellow severely within a few months. Once the hardcoat layer begins to delaminate it progresses across the lens just like peeling paint in various patterns. The hard coat peels faster when going through wet and dry periods so if your car is not garaged it happens even faster. If you have ever sanded out a set of lenses with some of this hardcoat remaining you will have noticed it really eats up the sandpaper until you get completely through that layer. The cheap ebay projector lights have this same hardcoat on them but in a much thinner layer. It usually degrades badly after the first year or two. I use the Ventureshield film on these light before they ever see the road to prevent early failures. You can spray on a clearcoat but you will not find anything nearly as hard as the OEM type coatings. The rock protection films are unique in that they are not affected by minor abrasion or pebbles even though they are a soft film. They are able to stay soft and clear due to the urethane constuction having excellent outdoor durability.


I wet sanded my stockers using a 4 level process (wet). Afterwards AZDAVE was kind enough to use his 3 step buffing compound with buffer to make them outstanding. Then came the VentureShield FTW.

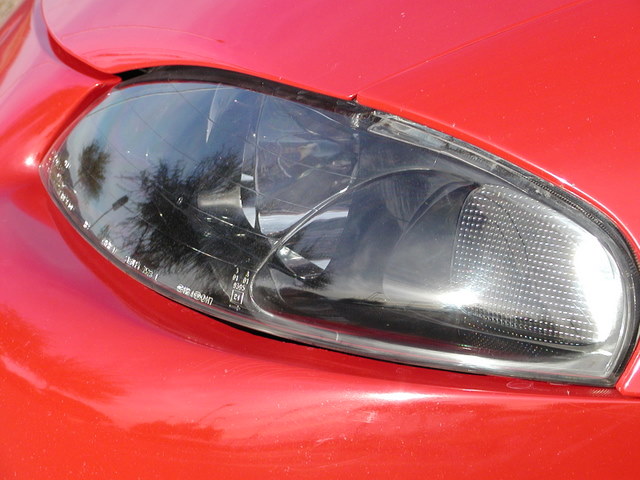

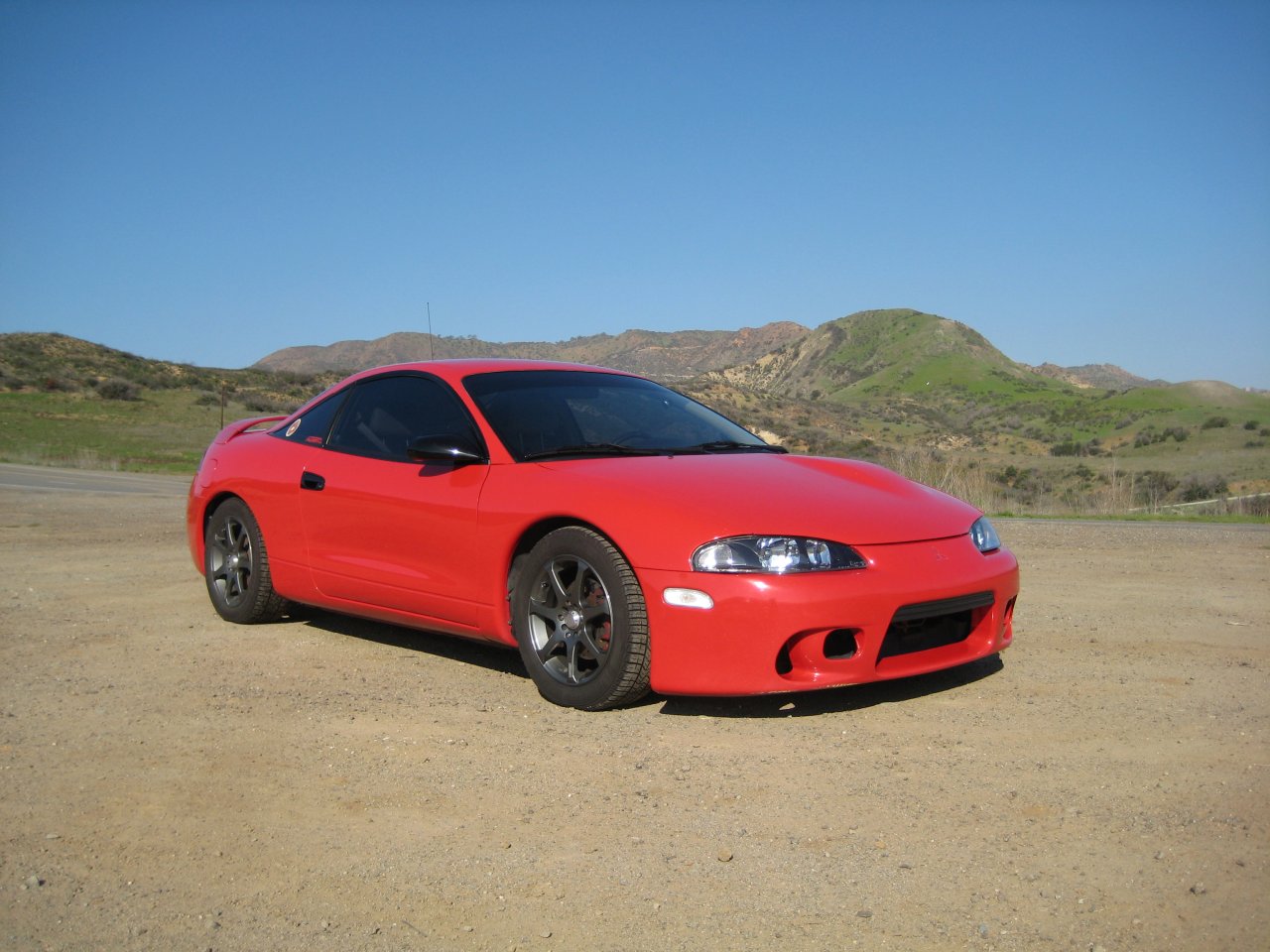

These pictures were taken about 8 months after the procedure. Since then it has spent almost every day without a garage in AZ and SoCal.

---

2012 2500HD LML




Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


azdaveSep-17-08 03:00 AM
Member since Nov 25th 2003
694 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101809, "RE: Headlight Fuzz"
In response to Reply # 17




Originally posted by CODE4

...after the procedure.


Sound all "surgical" or somethin'. emoji




I just checked ebay and didn't see anyone selling Ventureshield by the foot, only pre-cut kits (none for 2G Eclipse lights). If you need some film, shoot me a PM.





Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


ModeratortekleinSep-17-08 07:42 AM
Member since Nov 04th 2007
1699 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101810, "RE: Headlight Fuzz"
In response to Reply # 18




Originally posted by azdave
Originally posted by CODE4 ...after the procedure.
Sound all "surgical" or somethin'. emoji I just checked ebay and didn't see anyone selling Ventureshield by the foot, only pre-cut kits (none for 2G Eclipse lights). If you need some film, shoot me a PM.


What buffing compounds do you use?

I hand buffed mine, didnt want to machine buff for fear of melting the plastic.



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


azdaveSep-17-08 10:19 AM
Member since Nov 25th 2003
694 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101811, "RE: Headlight Fuzz"
In response to Reply # 19




Originally posted by tekleinWhat buffing compounds do you use? I hand buffed mine, didnt want to machine buff for fear of melting the plastic.


Standard stuff used for automotive paint. I use Presta brand but 3M or McGuires is good too.

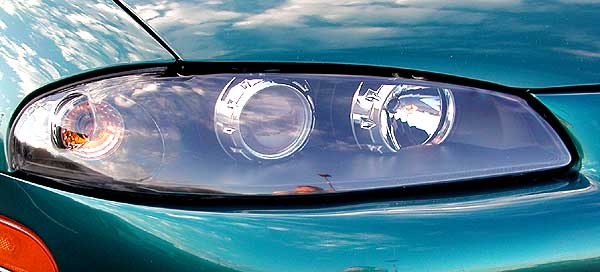

Machine compound, fine compound and then final polish are the three steps after hand sanding out the deep scratches and yellow plastic lyare. I keep a separate buffing pad for each compound and don't mix them. You can be pretty aggressive with headlights as the plastic is made for high heat and it is quite thick for impact resistance. If you buff tail lights it is much easier to burn the edges and screw up due to the different plastics used.

I always remove the headlights to buff them. That is your option but I will not risk my paint trying to get the edges around the headlight.

For the lenses I wet sand first with:
320
400
600
800
1000

Then I buff in three steps as above.



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


ModeratortekleinSep-17-08 10:55 AM
Member since Nov 04th 2007
1699 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101812, "RE: Headlight Fuzz"
In response to Reply # 20




Awesome,

I did nearly the same thing, only buffed out with PlastX.

I took them off the car as well emoji



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top


freelancefoolSep-17-08 01:43 PM
Donating 2GNT member
765 posts,
Click to send email to this author Click to send private message to this author Click to view this author's profile Click to add this author to your buddy list
#101813, "RE: Headlight Fuzz"
In response to Reply # 21






Dave always manages to astound me when he posts something. I didn't even think to use the RockShield stuff. Everyone around here always talk about using it on hoods and bumpers around this time of the year when we get love bugs real bad too.

Thanks for the input Dave, I will probably pull my headlights off again this weekend if I can get some of that wrap in town.

My Blog



Report This Post to Admin Printer-friendly copy | Reply | Reply with quote | Top

Top 2GNT Technical Interior/Exterior topic #101769 Previous topic | Next topic
Powered by DCForum+ Version 2.2
Copyright 1997-2005 DCScripts.com, Copyright 2005-2026 2gnt.com
Generated in 0.074 seconds, executing 58 queries.
