#109596, "Loose hose on passenger side under hose?????"
There is a loose hose right below the timing gears that is loose and I dont know where it goes. I think it comes off the evap canister and comes up under the timing gears and ends right near the engine bracket......there is a orifice that has a cap on it but it doesnt do any good when i hook it up there......can someone please tell me where it goes? It is a rubber hose that connects to a metal pipe that feeds to the evap can.
#109597, "RE: Loose hose on passenger side under hose?????" In response to Reply # 0
It should connect to the nipple on the throttle body.
______________________________ If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.
'95 Eclipse TurboGS (garage deco) '95 TSi AWD (restoring a survivor) '97 Talon ESi-T (poor impulse control) '99 Eclipse RS-T (daily beater) '13 Evo X (mostly stock) '17 Sienna (Middle Aged Dad Mobile)
#109598, "RE: Loose hose on passenger side under hose?????" In response to Reply # 1

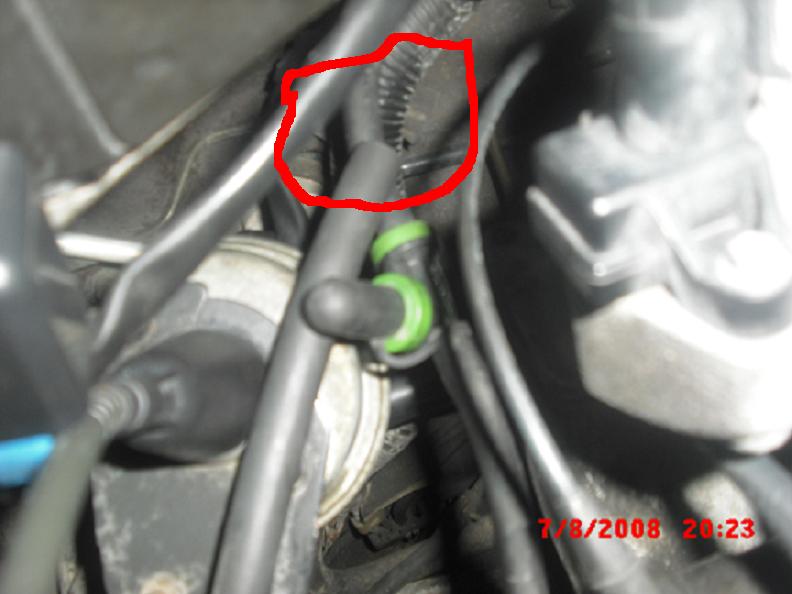

this is the hose he is speaking of. the other end of it connects into the top hard metal line that runs on the inside of the engine bay down towards the evap canister.
The obvious spot where it looks like it should go in the pic makes the car loose vac and not run correctly.
98 RS: Mods: Custom Stage 2 Turbo kit , 55mm throttle body, gutted cat, evo cat back exhaust, p/p intake manifold,p/p Head, af-x underdrive pulley, B&M short throw shifter,Built bottom end Je pistons eagle rods 8.8:1 compression.
Status:Up and running again! nice new paint
Custom stage 2 hahn turbo kit Hahn Super 16g turbo (ceramic coated) Hahn manifold (ceramic coated) Hahn Downpipe assembly Hahn intercooler piping smic Hahn oil line kit Type s bov 2G Gsx smic walbro 255 fuel pump Synapse missing link Vortech s-fmu NGK Bkr7e11 Plugs A-pillar w/boost, a/f, oil pressure gauges
#109600, "RE: Loose hose on passenger side under hose?????" In response to Reply # 2
yeah, it's the EVAP line. it connects to the nipple on the throttle body.
______________________________ If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.
'95 Eclipse TurboGS (garage deco) '95 TSi AWD (restoring a survivor) '97 Talon ESi-T (poor impulse control) '99 Eclipse RS-T (daily beater) '13 Evo X (mostly stock) '17 Sienna (Middle Aged Dad Mobile)
#109601, "RE: Loose hose on passenger side under hose?????" In response to Reply # 3 Aug-05-08 03:41 AM by joeck76
something on his car is backwards then cause the nipple on his throttle body connects to the plastic hose that runs alongside the back of the motor and then turns hard left into a hard line up and over the valve cover and down under the water neck and down towards the rad and then over to the right toward the evap. Unless that line should tee off and go to both. i know the evap has a source from the gas tank the throttle body and it says in the manual from the intake. just never saw this line before
98 RS: Mods: Custom Stage 2 Turbo kit , 55mm throttle body, gutted cat, evo cat back exhaust, p/p intake manifold,p/p Head, af-x underdrive pulley, B&M short throw shifter,Built bottom end Je pistons eagle rods 8.8:1 compression.
Status:Up and running again! nice new paint
Custom stage 2 hahn turbo kit Hahn Super 16g turbo (ceramic coated) Hahn manifold (ceramic coated) Hahn Downpipe assembly Hahn intercooler piping smic Hahn oil line kit Type s bov 2G Gsx smic walbro 255 fuel pump Synapse missing link Vortech s-fmu NGK Bkr7e11 Plugs A-pillar w/boost, a/f, oil pressure gauges
#109602, "RE: Loose hose on passenger side under hose?????" In response to Reply # 4
I'd have to get a better picture of it to say, then, because when i'd seen that line with that green and black fitting previously (on a mostly stock car), it was connected to the plastic hardline that ran from the nipple on the TB, and from there to the hardline that ran to the evap can.
leave it off. Fuck it.
______________________________ If a sentence found online has 35% misspellings or greater and includes at least two racially charged expletives, chances are it is a YouTube comment.
'95 Eclipse TurboGS (garage deco) '95 TSi AWD (restoring a survivor) '97 Talon ESi-T (poor impulse control) '99 Eclipse RS-T (daily beater) '13 Evo X (mostly stock) '17 Sienna (Middle Aged Dad Mobile)
#109612, "RE: Loose hose on passenger side under hose?????" In response to Reply # 6
The line with the valve that has the green cap goes from the 3-way nipple on the back of the intake manifold to the hardline that runs over the top of the valve cover next to the cam gears.
The line that comes off of the throttle body runs to the hardline that is attached to the fenderwell underneath the cruise control.
