Ok so I had an over heating problem.

Tested the

Fans - Good
Relays - good
Sensors - kinda old and off by a bit, replaced with new ones
Wirring to fans - good
Wires from ECU - Not sure here...

IF I turn on the AC they turn on fine. So I figured, it must be the sensors... But they were replaced and the fan still doesnt turn on.

Ive notice a couple of things here...

For the Relay, it reads 11.10 instead of of battery voltage. Is this enough for the relay not to switch over? Could it be that it has the voltage but not the current? in which case its the ECU thats bad?

Now if I pull ground for the relay from anywhere else... it works ( positive is still from the relay harness). But, it stays on constantly, regardless of engine temp.

So does the ECU send a ground signal or the positive one?

on the AC fan, when its not on, ground is constant, and the positive is off... flip on the ac and then the voltage goes to 11.52 (engine off). Fans go on, flip it off - fans off. Its weird.

Member # 751


FOUNDER of the Central Cali chapter of 2GNT!
(I got kicked out after I refused to go Cow tiping) - Hehehe you know who this is for

i had a similar problem and it turned out the be a little weight thing inside the motor was sticking so it wouldnt make a connection . clean it and it has been working since

LED tails : Done for now!
99 eclipse rst
cobalt blue met. paint,star stage 2 upgraded t3/t460trim turbo ceramic coated , polished compressor housing, ,optima yellow top, chrome i/c piping ,front mount ntercooler ,apexi turbo timer . zeitronix wb02 ,faze oil ,boost gauge,egt ,bosch 4x plugs,kyb agx struts, pro kit springs.17''adr venomous rims,Falken azenis ,brembo dilled/slotted rotors ,turbo xs bov ,oil catch can,manual shiftknob,autometer pyrometer egt , vortech sfmu,b&m fuel pressure gauge ,accel 310cc injectors ,gasketmatched and polished intake manifold ,58mm throttle body ,no egr,polished turbonetics wastegate,fuel pump rewire,homade fcd and a lot more .LED reverse lights ,sidemarkers and tails .atx to mtx swap . South bend tz clutch . Tons more
http://imageshack.us>


http://www.2gnt.com/index.php?d=boosted60trimrst
My contribution to the wiki
http://www.2gnt.com/index.php?d=crank%20arm%20spindle%20mod%20to%20fit%20power%20panels

Yeah, but the fans are fine. Even went as far as replacing it with a new one.

Member # 751


FOUNDER of the Central Cali chapter of 2GNT!
(I got kicked out after I refused to go Cow tiping) - Hehehe you know who this is for

Is the fan motor it self good? Also, check and make sure that the fuse in the fuse box for the fan is not blown.

Any signal or sensor that commands the radiator fan relay to activate goes through the ECU. The ECU provides a ground path to the radiator fan relay under the hood. If the radiator fan runs when you turn on the A/C, this confirms that all the relays and motors are okay as the signal to turn on would have to come from the ECU.

The ECU looks at several items to decide about cooling needs. A/C on/off and the two-wire sensor under the thermostat being the main inputs to the ECU to determine if the radiator relay closes or not. The speed sensor is involved as well although I have not investigated how it exactly ties in. I would have to guess at freeway speeds the radiator is commanded to turn off if the temp sensor does not see extreme needs for cooling. Anyone know on the speed sensor issue if it comes into play?

Sorry I can't help more but it looks like you have done the obvious checks. Of course, all this assumes you have no mods to the fan wiring.

Nope, Like It told the guy above. Its not the fan. I even replaced it just to be sure.

Its also not the fuses... thats a basic check.

Dave, If it is indeed a ground signal then it might be the ECU... damn this...

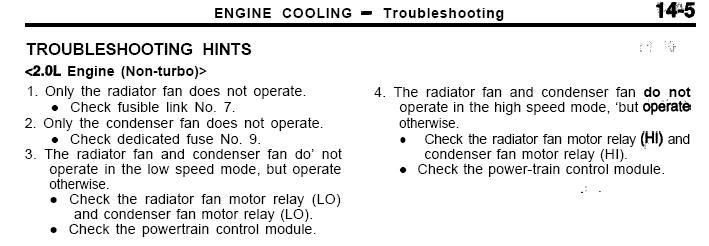

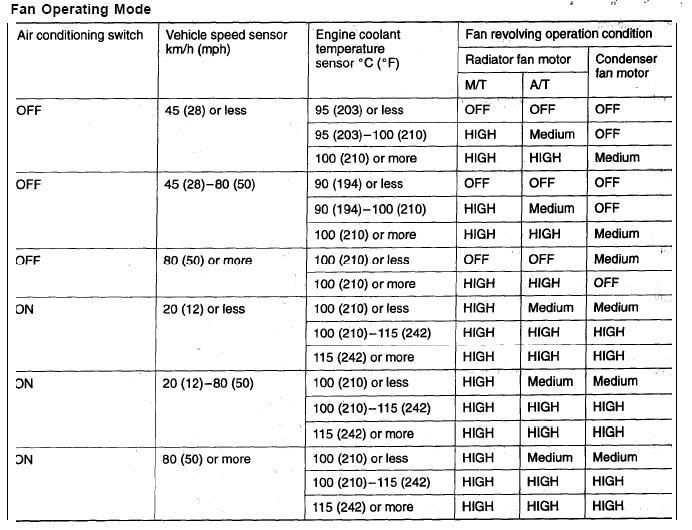

oh and heres how the fans and sensors work

Member # 751


FOUNDER of the Central Cali chapter of 2GNT!
(I got kicked out after I refused to go Cow tiping) - Hehehe you know who this is for

Do both fans turn on when you turn on the AC? Because only the passenger side should.

Only the drivers side should turn on at first, and if it the temps rise high enough then both kick in, and the main fan spins faster.


Exile Racing Technologies
http://www.exileracing.com
Go that way, really fast, if something gets in your way... turn.

look at ebay there is a dude selling a fluidyne(sp) with the fal fans like 200 bucks. all metal baby

We will build you bigger and stronger


Wake up and drive my ass... More like wake up and fix it.

If the opposite of Pro is Con
then the opposite of Progress is Congress

Its not a matter of the radiator and fans not being enough. Its already a fluydine with Spal fans and the 180 deg stat.

The fact that the fans arnt working is whats giving problems.

Here is an interesting fact I found out long ago, Both come on with the car off, one with the car on ( AC on). thats with the engine running, not just in the "run" position.

Everything was working fine, untill now, which is why I figured it would be the sensors ( had some issues with MPG and such as well). Now im starting to beleive its the ECU.

But likes other have mentioned... why would that section of the ECU crap out like that?

Edit: another interesting fact. A lot of NT dont have some of the relays and fan set up like its states in the manual... I only have the RAD FAN LO relay and wirring, The sockets are there for the HI but no wires in there...

Bothe AC ones are in there...

Member # 751


FOUNDER of the Central Cali chapter of 2GNT!
(I got kicked out after I refused to go Cow tiping) - Hehehe you know who this is for

Im about to give up... I need a new ecu, or let MS take care of the fans.

Member # 751


FOUNDER of the Central Cali chapter of 2GNT!
(I got kicked out after I refused to go Cow tiping) - Hehehe you know who this is for

Did you isolate and test the wiring between the coolant sensor (and speed sensors I guess) and the ECU? I know the coolant wires are some of the longest ones in the harness...

Hope you get it figured out, I have spare sensors and 2 dsms if you want to come by and swap parts around.

Hey, did you see if the fans were any good?


No NO J/K. I saw that enough in the thread

Other than that; I got nothing

Sorry,
MB

Captain Caveman

96 RS Turbo 11.414 @ 119.62 MSNS, Crower 2 NA cams, BW366, 10.5 comp, UDP, 60mm TB, W/A intercooler, 3.55 tranny 567.9whp 430tq
97 RS NA 13.188 @ 103.87 MSnS powered 12.5 comp, Crower 3's and 219.4whp with 175tq
98 RS DD 12.5 comp on stock ECU, LTH, Crower 2's, Koni, GC, Hypercoil, DG hats
99 OZ 5sp Stocker 15.856 @ 85.97
99 GS stocker auto 17.7@77mph!

wiki home page:http://www.2gnt.com/index.php?d=bullettdsm

bullett...no beer for you.

Think I will take you up on that dawg... drive there with the ac on in this 50 deg weather lol.

Now that you mention in though, I assumed the wires from the sensors to the ecu were good... I should test that.

When I tested the resistnase of the new sensors vs the olds ones, the differences were minor, if any at all.

As far as the speedo wires ( I did re wire things for the MT, but it was working fine for 2 weeks w/o any speedo signal whatsoever). The fact that things just quit is what gets me...
